15

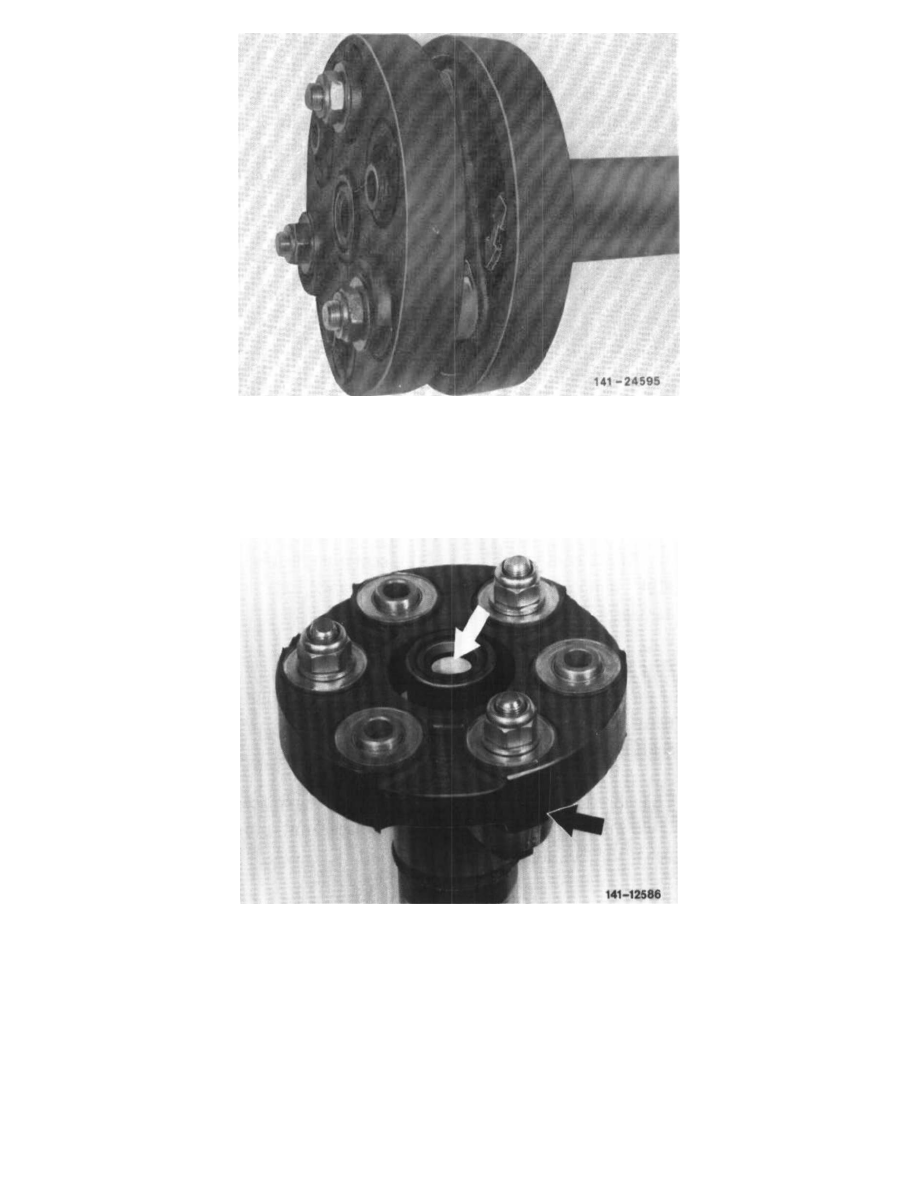

If during renewal of companion plate the vibration eliminator is separated from propeller shaft, assemble vibration eliminator and three-arm flange
as marked. The installation position is in order, if the arrow of vibration eliminator points toward hump on three-arm flange.
Installation
Installation
16
Fill cavities of the two centering sleeves with specified grease (approx. 6 grams per sleeve).
17
Slip propeller shaft without vibration damper on centering pin on transmission and on rear axle.
Note: Also refers to vehicles with engine 115, starting September 1979, with vibration eliminator.
