300TD (123.193) L5-3.0L DSL Turbo (617.952) (1984)
/l5-3.0l_dsl_turbo_(617.952)/Page-716011.png)
20

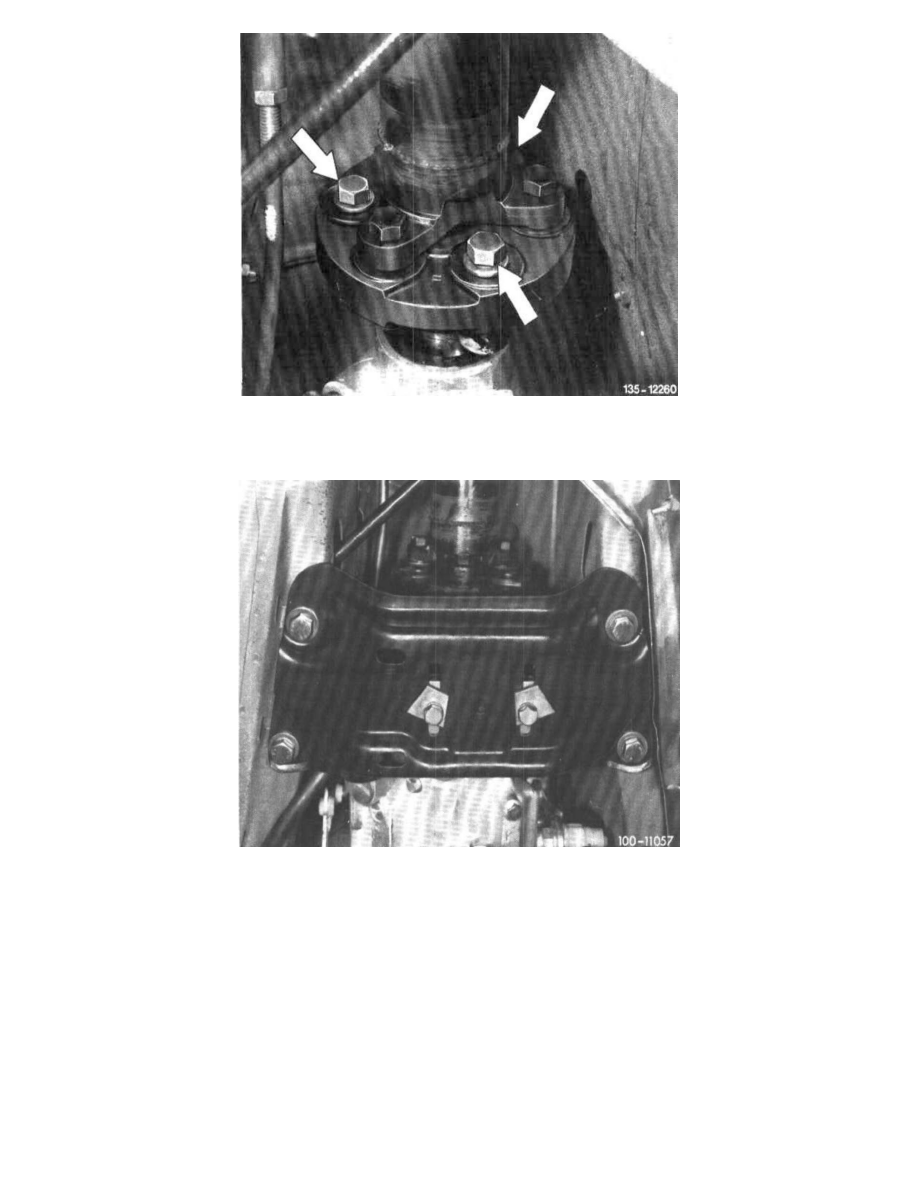

Flange propeller shaft to transmission and to rear axle. Tightening torque of self-locking hex nut 45 Nm.
Attention! Renew self-locking hex. nuts on principle.
Rear Engine Carrier On All 5- And 6-Cylinder Engines And On 4-cylinder Engines With Automatic Transmission.
21
Mount rear engine carrier. Tightening torque of hex screws 45 Nm.
22
Lower transmission and position hex bolts for rear engine mount and tighten to 25 Nm.
