500SL (129.067) V8-5.0L (119.960) (1990)

Page 1
background image

Electronic Throttle Control Module: Locations
EA/CC/ISC Control Module

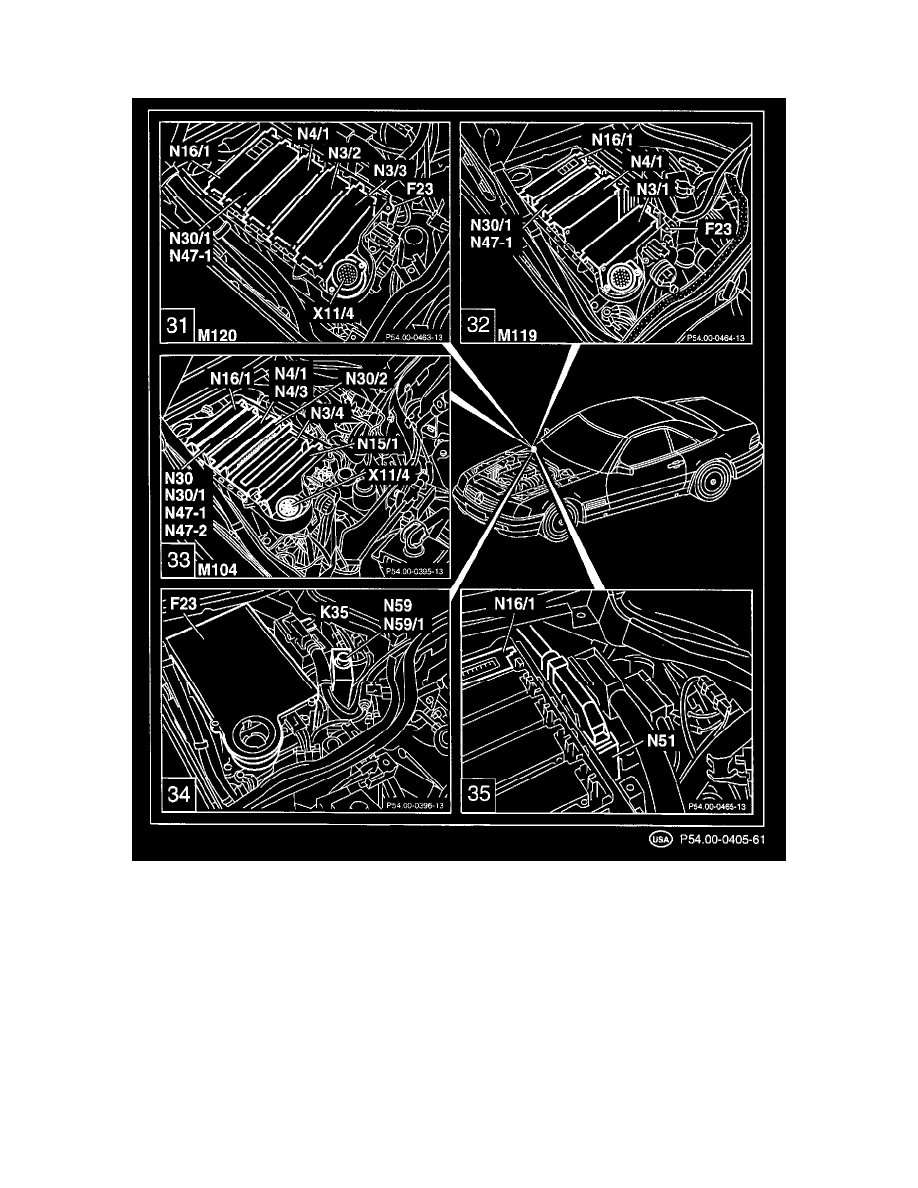

Figure

31-33

Component Name

EA/CC/ISC control module (in Module Box)

Component ID

N4/1
