C 230 CL (203.740) L4-1.8L SC (271.948) (2003)

Page 1
background image

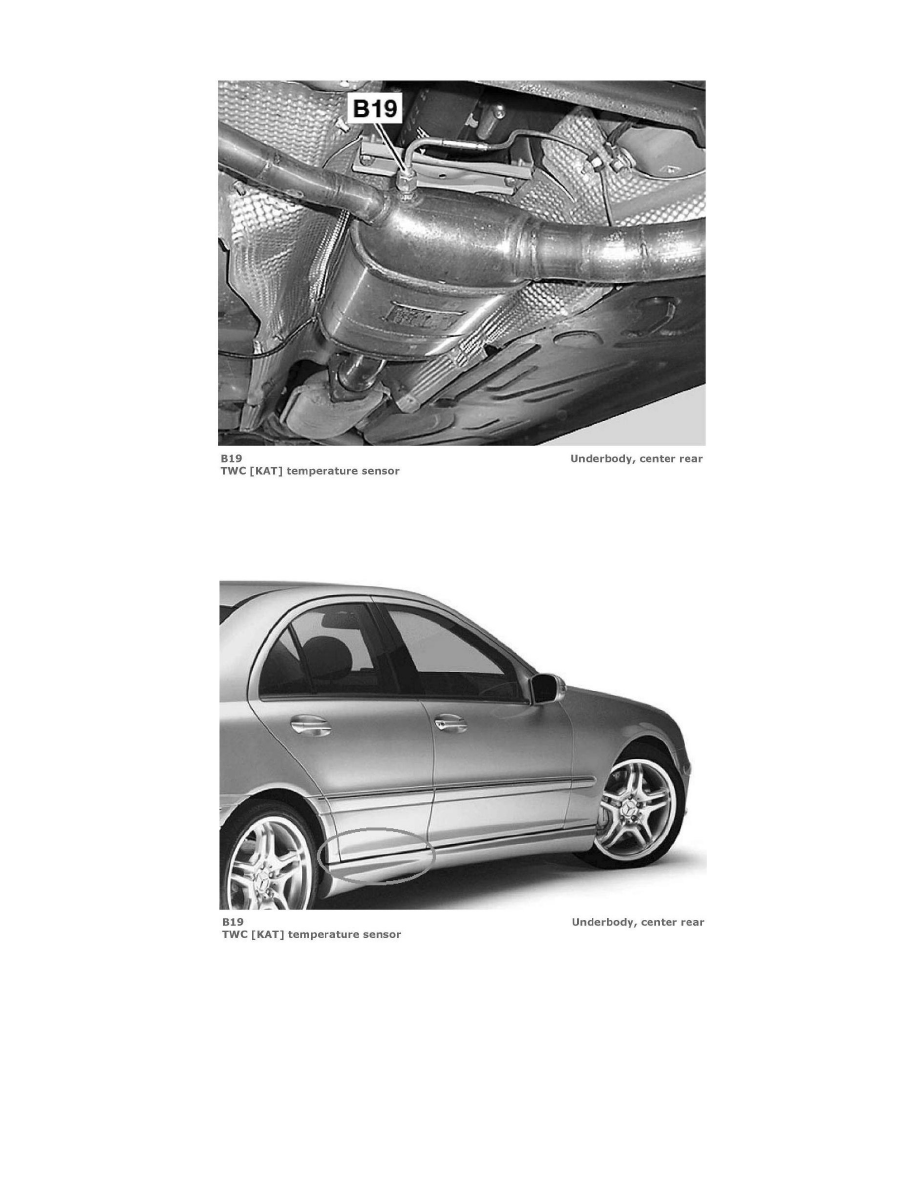

Exhaust Temperature Sensor: Locations

TWC [KAT] Temperature Sensor (View 1)

TWC [KAT] Temperature Sensor (View 2)
