C 240 4MATIC Sedan (203.081) V6-2.6L (112.916) (2005)

Page 1
background image

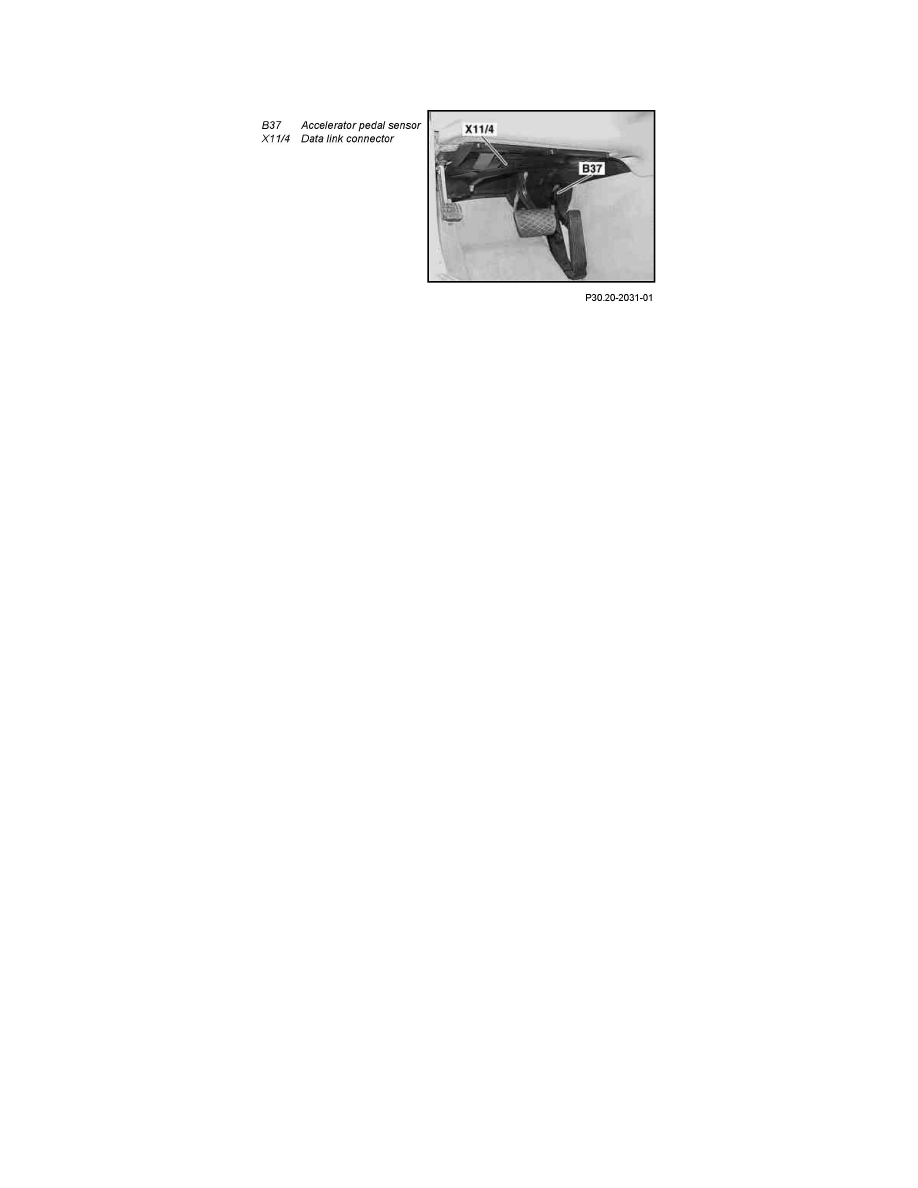

Accelerator Pedal Switch: Locations

GF30.20-P-4011-01P Pedal Value Sensor Position

The accelerator pedal sensor is located at the top of the accelerator pedal module.
