Rear Door Panel: Service and Repair
RA72001400101X Remove/Install Door Liner on Rear Door
Special tools
Removal, Installation

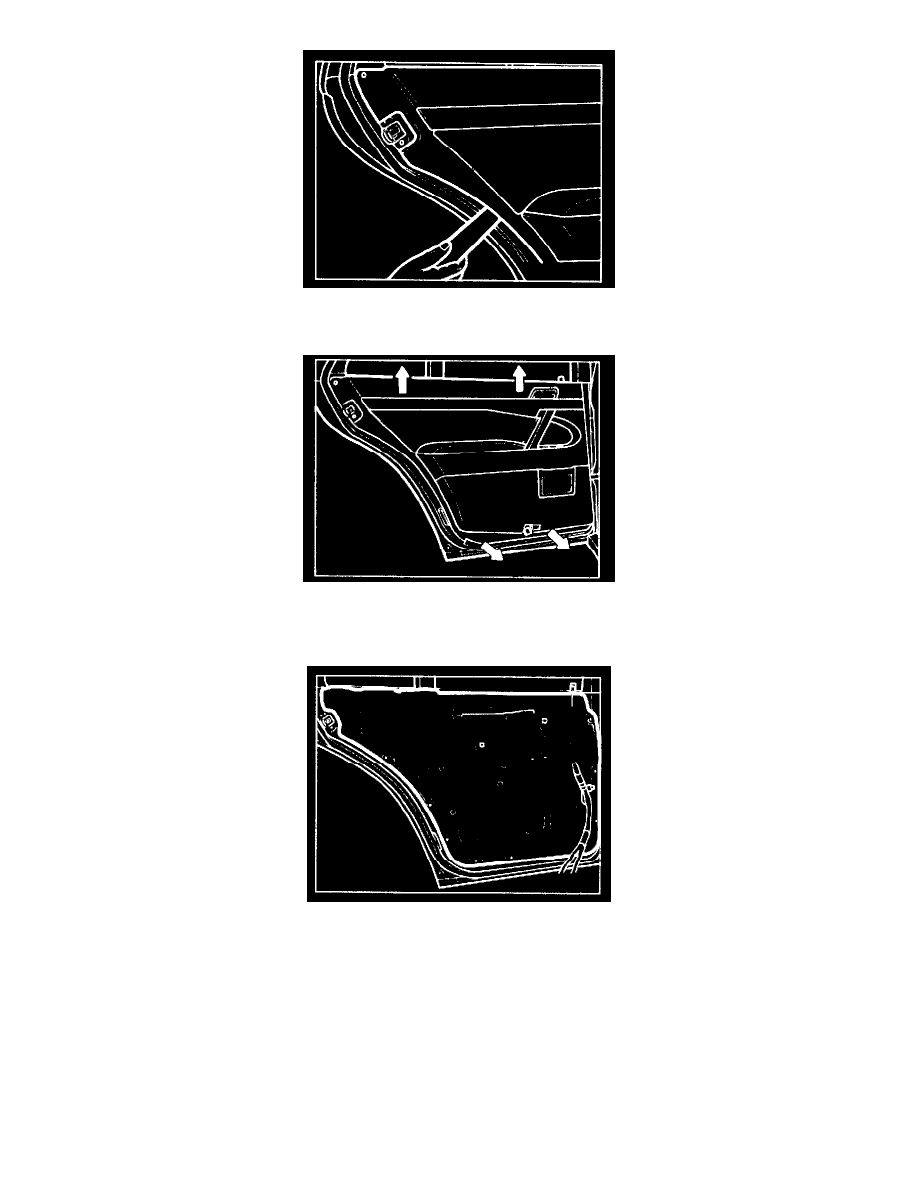

1. Remove entry light.

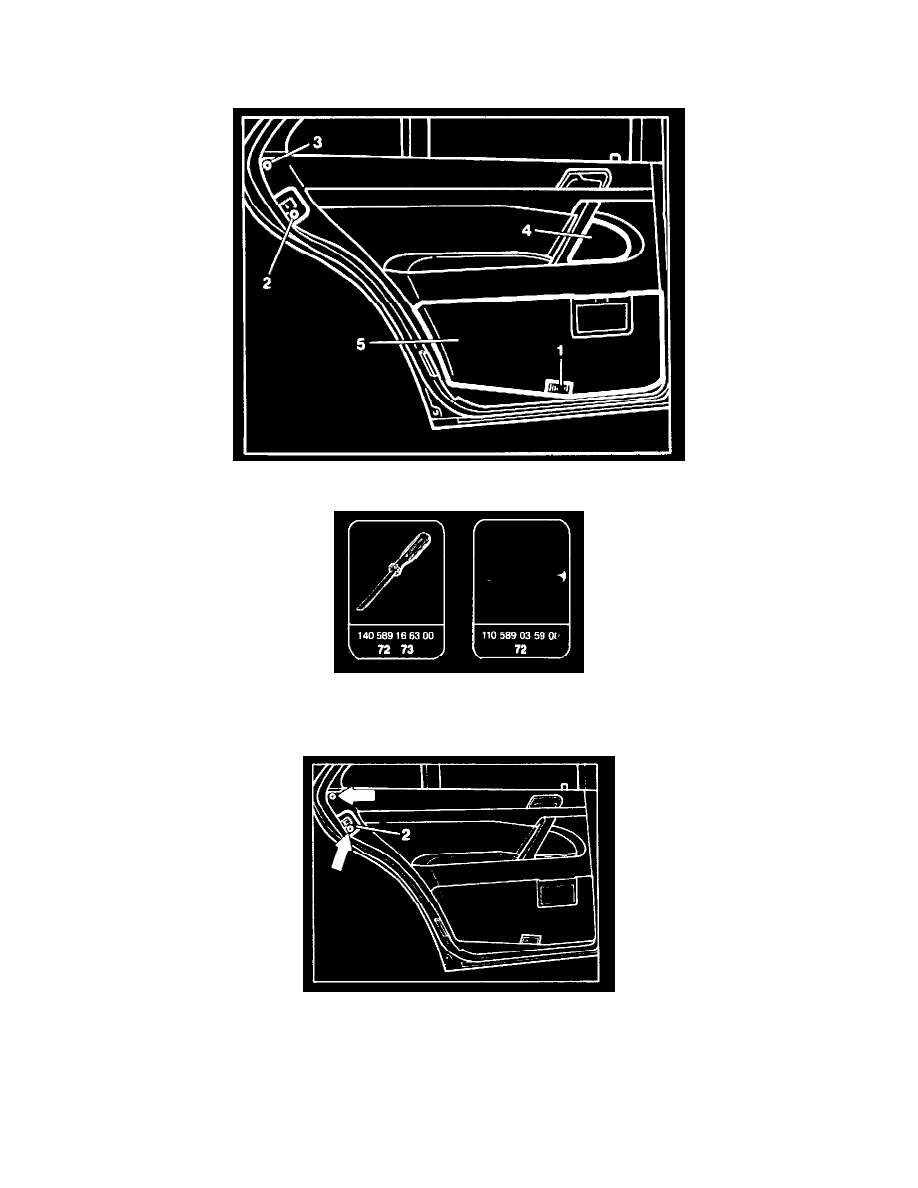

2. Screw out screws on door liner and lock cover plate (2) and remove.
