CL 500 (140.070) V8-5.0L (119.980) (1999)
/v8-5.0l_(119.980)/Page-2271001.png)
Heater Core: Locations
Front

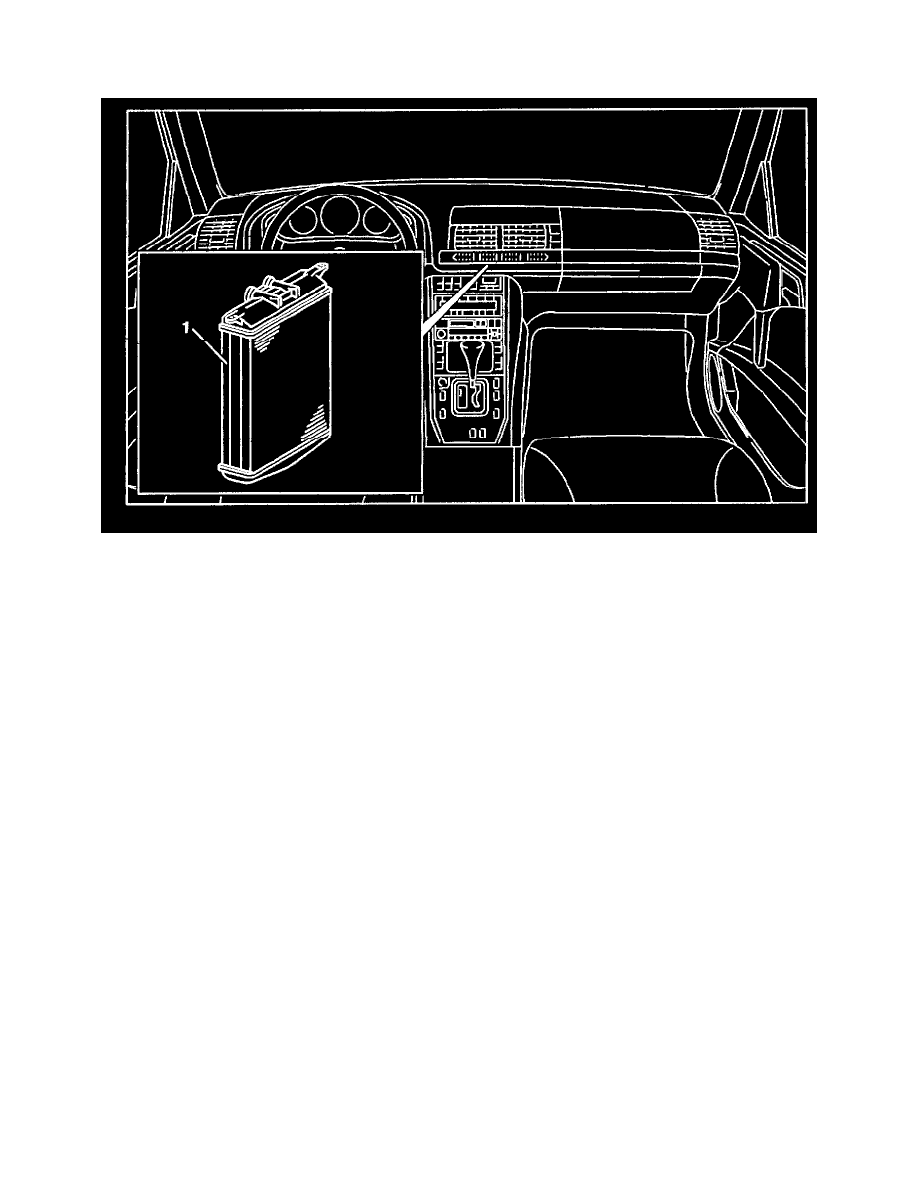

Illustrated with automatic heater (HEAT*)
The heater core (1) is located behind the instrument panel in the air conditioning housing.
* Not available in USA. USA specification vehicles are equipped with AAC (Automatic AIr Conditioning). ACC vehicles are similar to the image
shown.
