CL 500 (140.070) V8-5.0L (119.980) (1999)

Page 1
background image

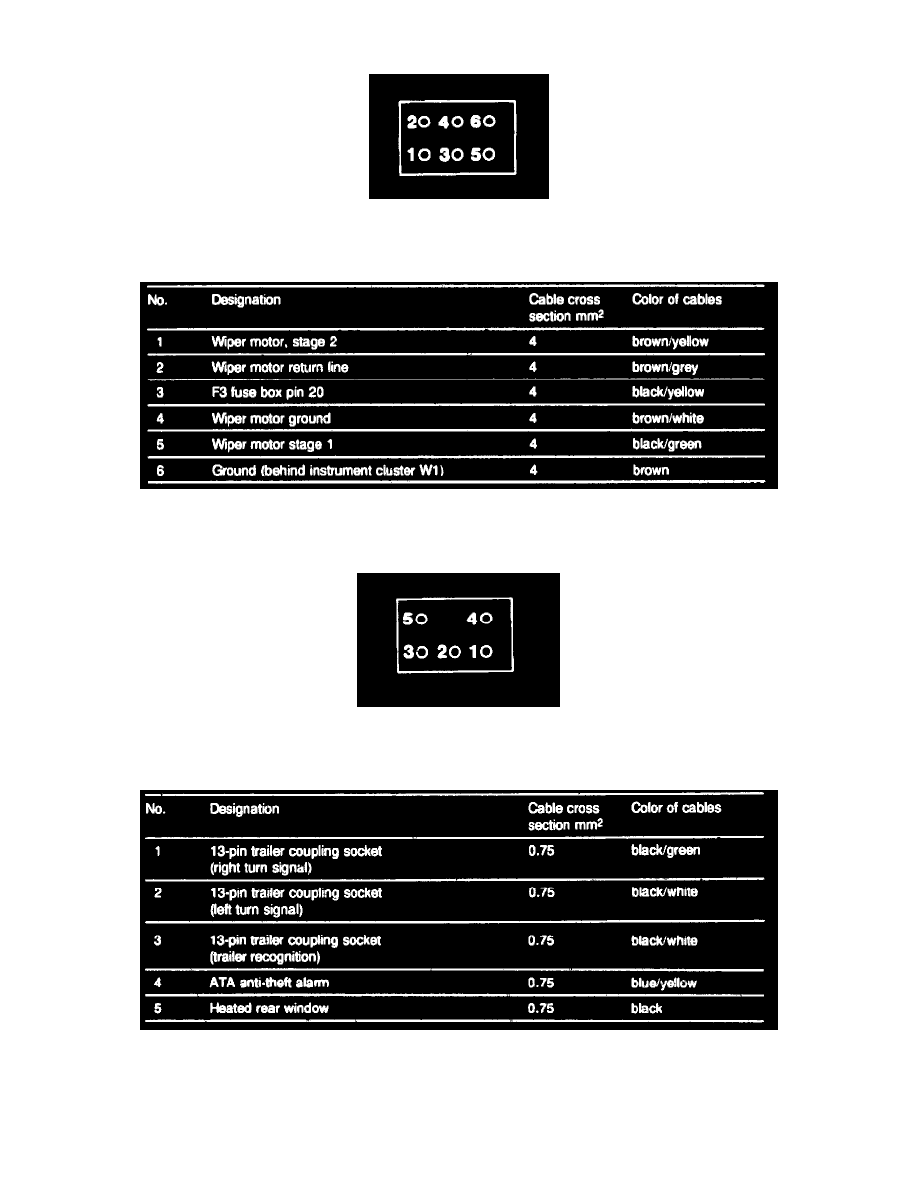

Power Distribution Relay: Diagrams

6-pin connector (connector 5)



Pin assignment for 6-pin connector



5-pin connector (connector 3)



Pin assignment for 5-pin connector
