CL 500 (140.070) V8-5.0L (119.980) (1999)
5.
Lift the center section of the foam pad (arrow, Figure 1) to obtain access to the seat sensor assembly (B48).
6.

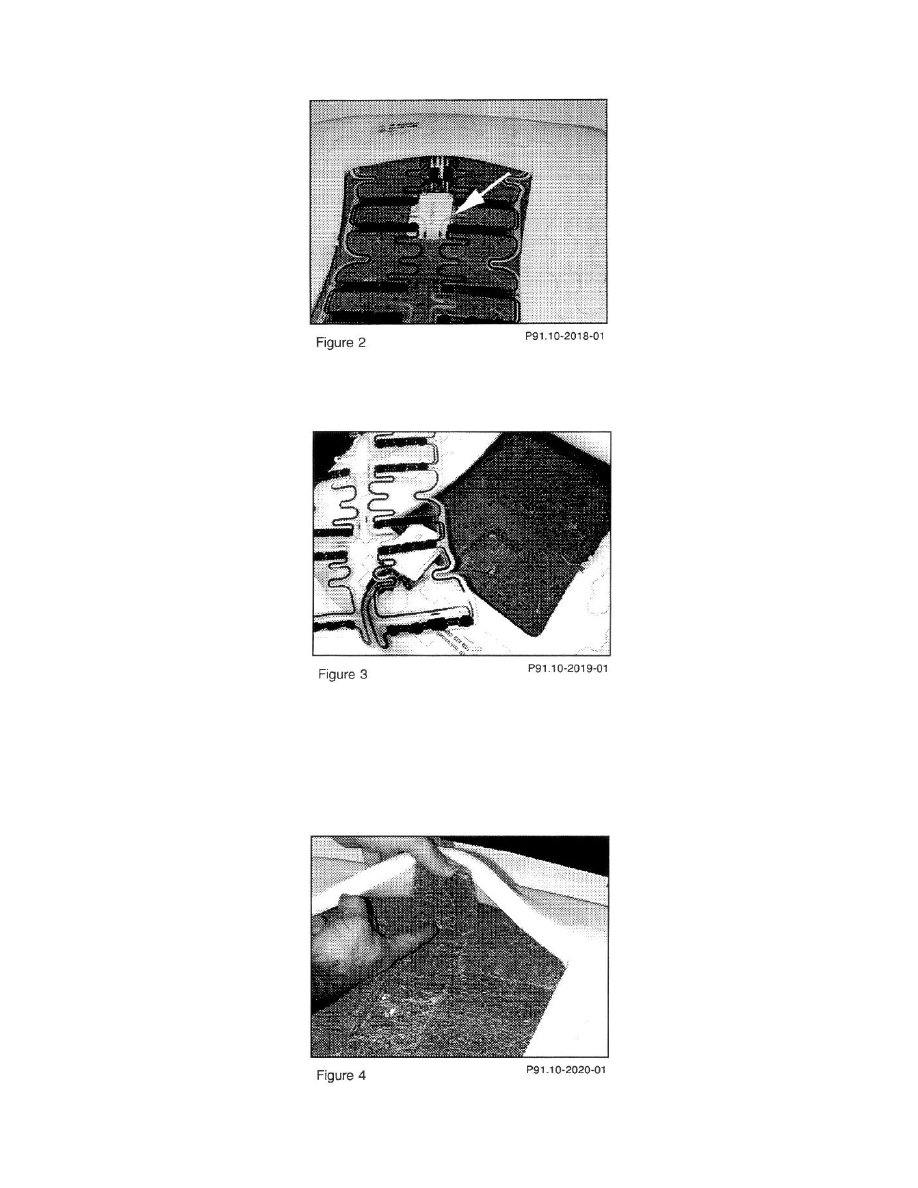

The printed circuit of the sensor rests on the rubberized fiber mat under the foam pad. A cutout in the rubberized fiber mat accommodates the
sensor box (arrow, Figure 2).
7.
Carefully lift the entire sensor assembly (Figure 3), pull the wiring with the connector through the hole in the rubberized fiber mat and set sensor
assembly aside.
8.
With a razor blade or a sharp knife, carefully cut a section equal in size to the sensor box, in the front, bulge part of the rubberized fiber mat. The
new cut-out should be directly in front of the old one (Figure 4). The cut segment of the mat will be reused to fill up the space of original sensor
box recess.
9.
Place the sensor assembly upside down on a flat surface. Apply felt onto sensor box and over approx. 1.5" on the printed circuit coming out of the
box (Figure 5).
