CL 500 (140.070) V8-5.0L (119.980) (1999)
/v8-5.0l_(119.980)/Page-161001.png)
Parking Assist Distance Sensor: Service and Repair

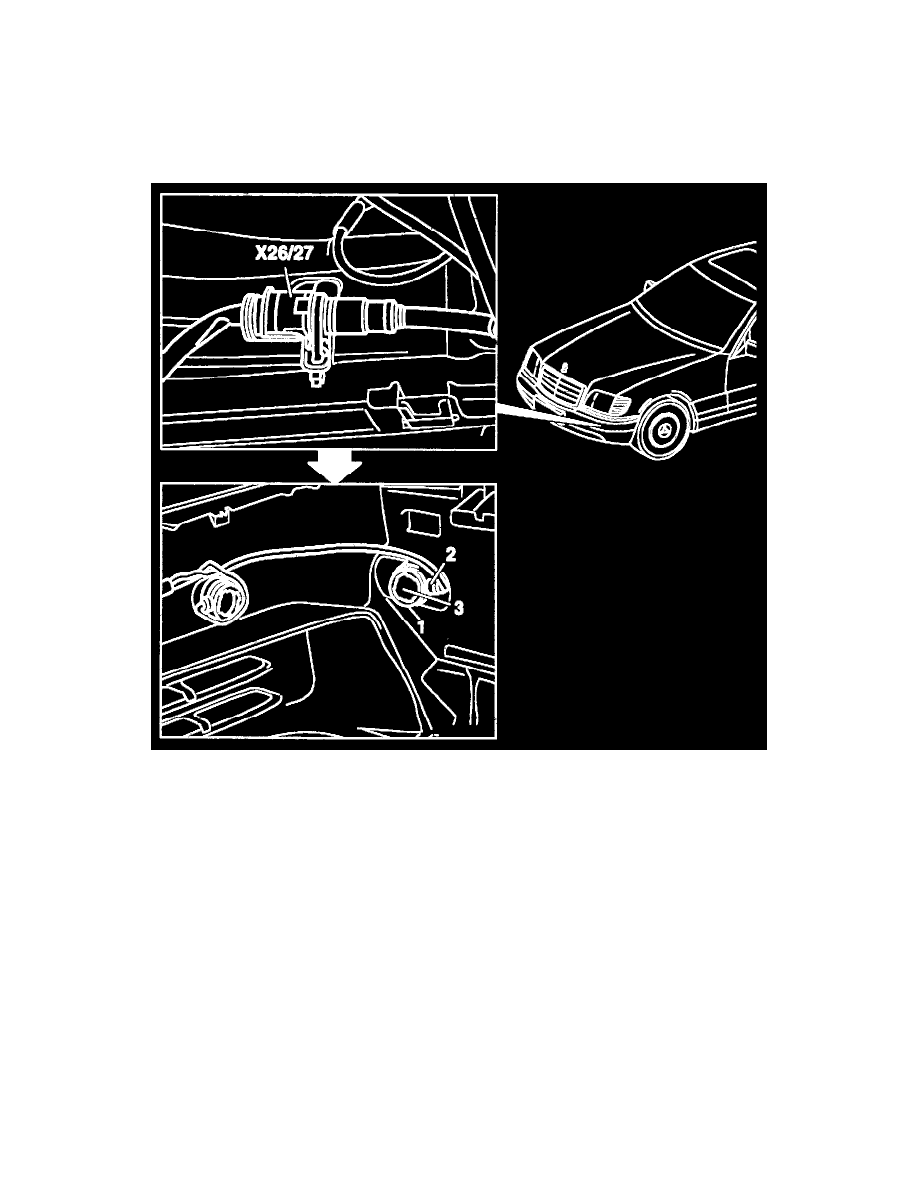

In Front Bumper
Preliminary work:
Front engine panelling removed
Connector (X26/27) on front cross member
disconnect, reconnect.
Front bumper
remove, install
Shock absorber in bumper
remove, install.
Retaining ring (1) on sensor housing
remove, install.
Connector (2) on sensor (3)
disconnect, reconnect.
Sensor (3)
pull out of housing, install.
NOTE: Replace sensor housings, if damaged.
