Page 10

background image

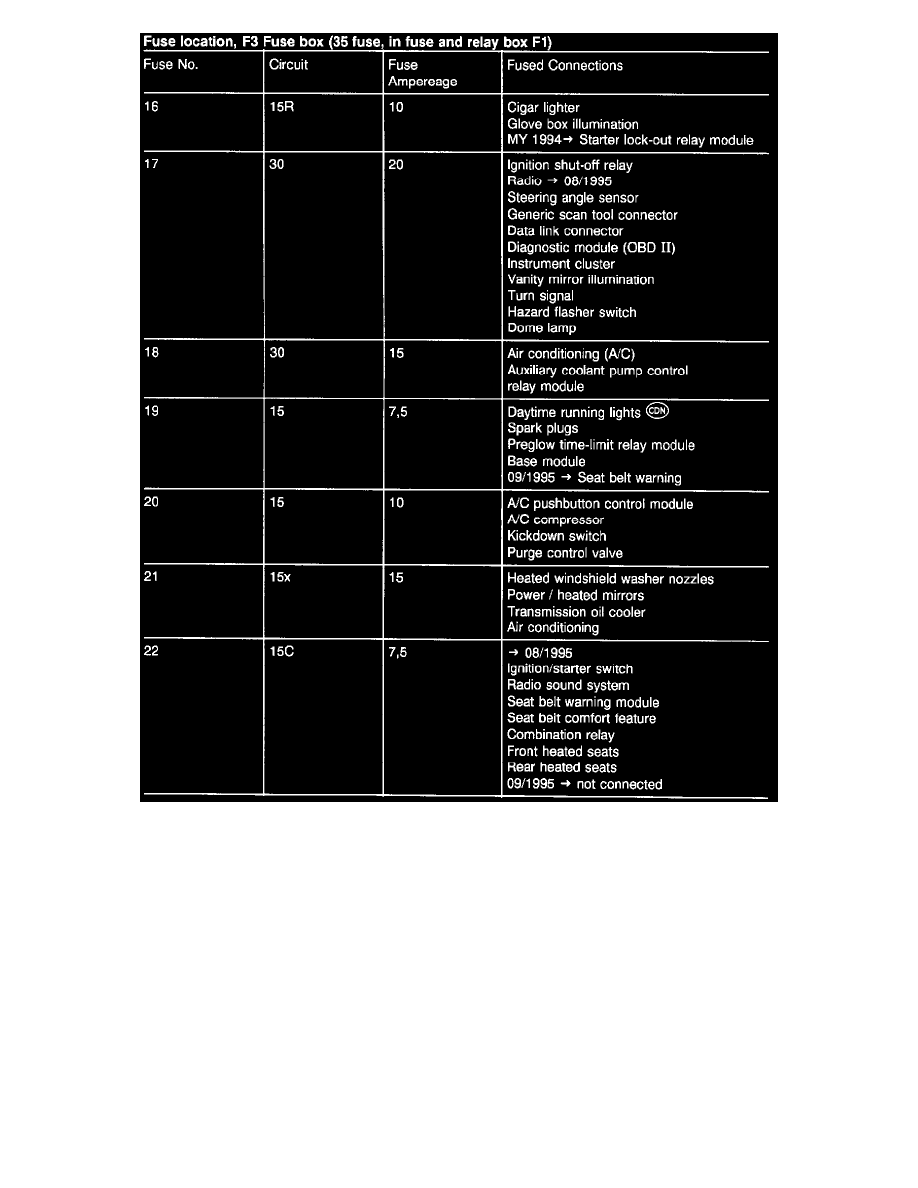

Fuses 16 - 22

Starting and Charging
Power and Ground Distribution / Fuse / Component Information
Diagrams
Page 5537
