Fuse Block: Component Locations

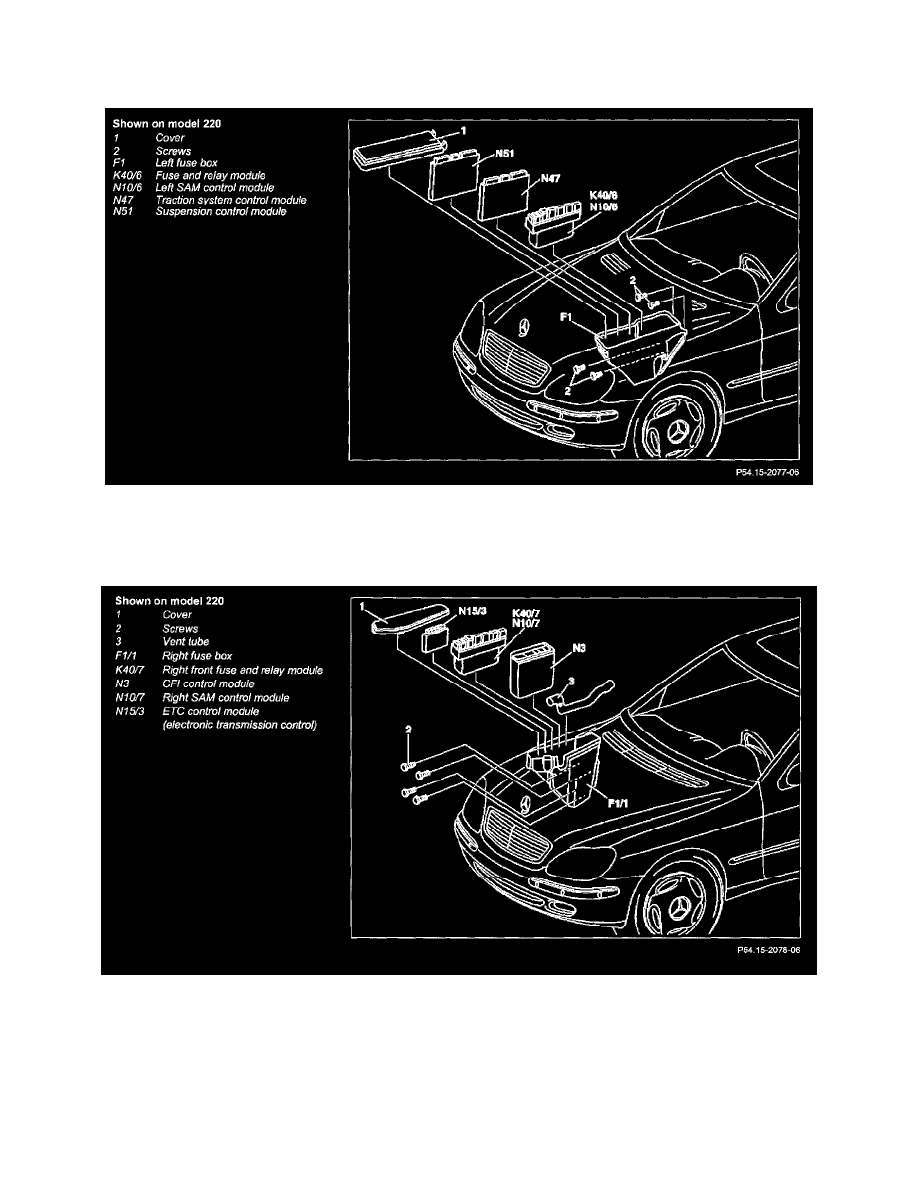

Fuse and Relay Box in the Left Engine Compantment

Shown On Model 220


Fuse and Relay Box in the Right Engine Compartment

Shown On Model 220
