CL 600 (215.378) V12-5.8L (137.970) (2002)
/v12-5.8l_(137.970)/Page-1142001.png)
Air Diverter Valve: Description and Operation

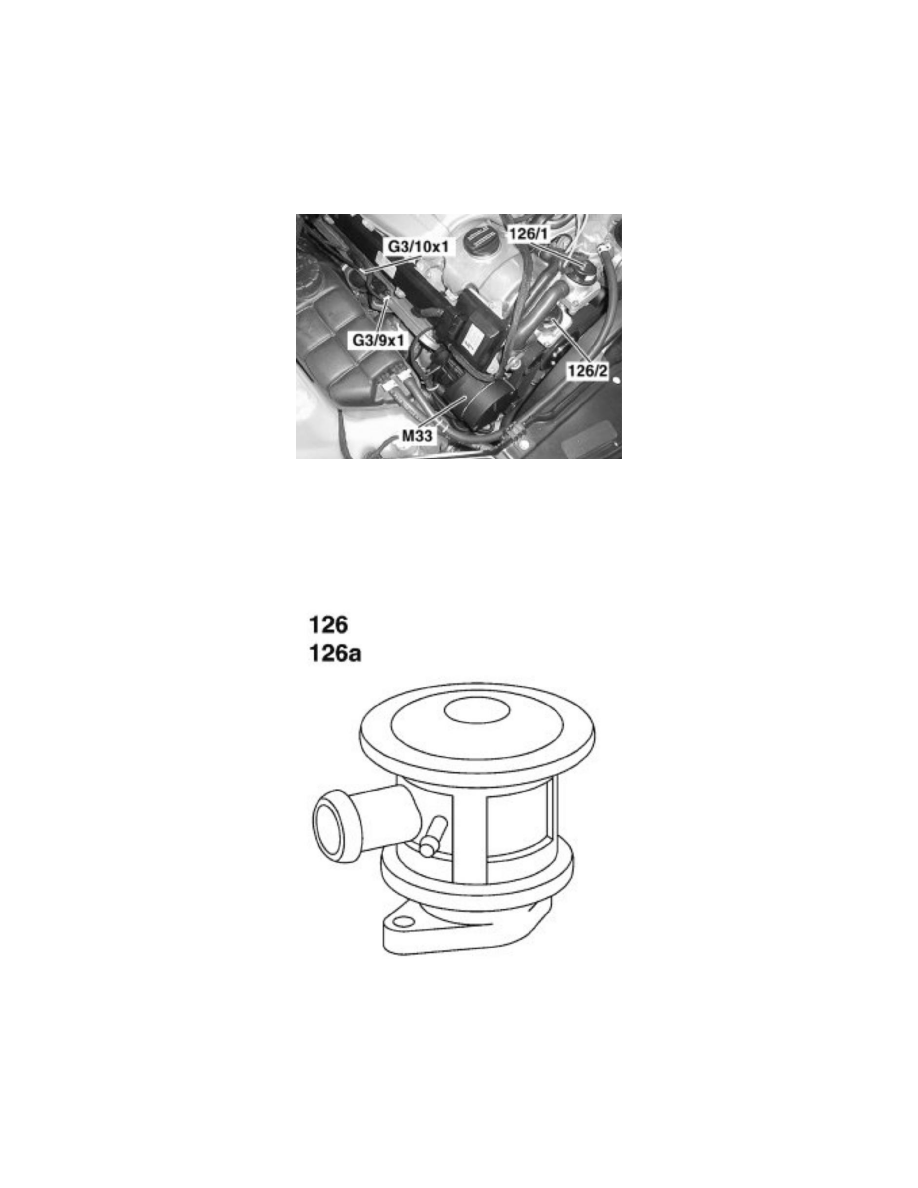

Air Shutoff Valve, Location/Task/Function
Air Shutoff Valve, Location
Air Shutoff Valve, Position
Engine 137
126/1
Secondary air injection shutoff valve, left bank of cylinders (combination valve with check valve)
126/2
Secondary air injection shutoff valve, right bank of cylinders (combination valve with check valve)
Air Shutoff Valve, Task
Air Shutoff Valve, Task
Illustrates Engine 120
126
Left air shutoff valve
126 A
Right air shutoff valve
