Air Flow Meter/Sensor: Locations

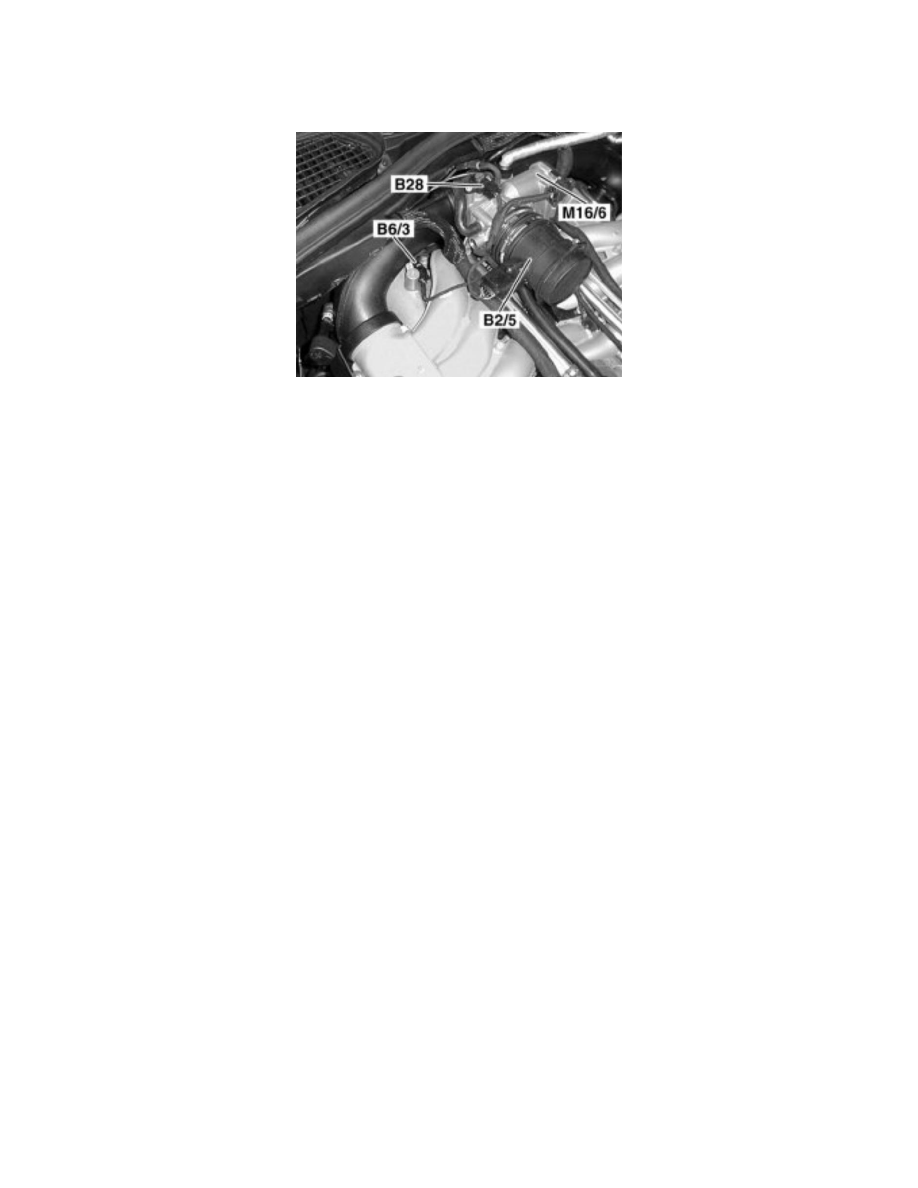

Hot Film Mass Air Flow Sensor, Location

Hot Film Mass Air Flow Sensor, Location

B2/5

Hot film mass air flow sensor

At throttle valve actuator
