CL 65 AMG (215.379) V12-6.0L Turbo (275.980) (2006)
/v12-6.0l_turbo_(275.980)/Page-1461001.png)
Antenna Amplifier: Service and Repair
AR82.62-P-8300I Remove/Install Antenna Amplifier Module

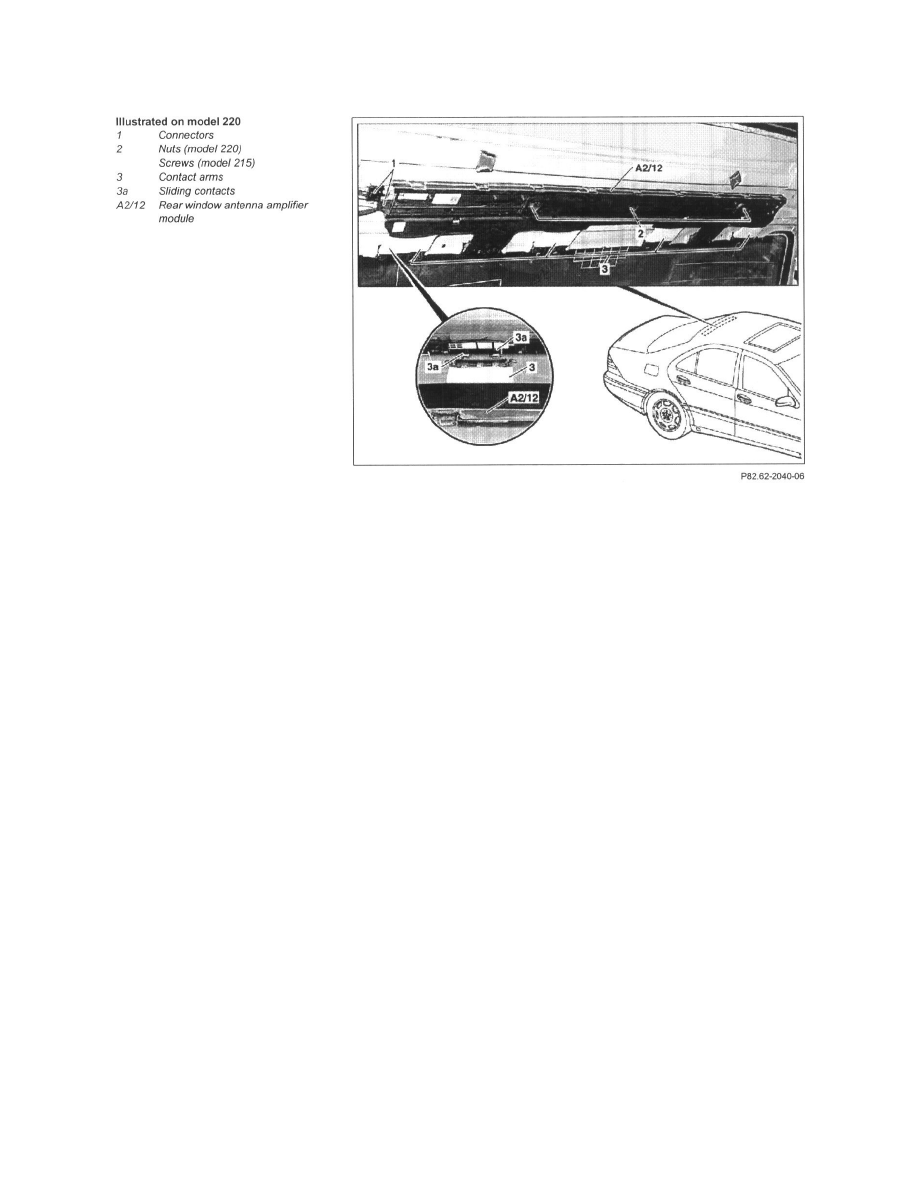

Illustrated On Model 220
1
Connect quiescent current retention unit
2
Disconnect ground lead from battery
3
Remove headliner
4
Disconnect connectors (1) on rear window antenna amplifier module (A2/12)
5
Unscrew nuts/screws (2)
6
Lower rear window antenna amplifier module (A2/12) slightly and slide out of guides in direction of trunk together with contact arms (3)
NOTE: Installation: Ensure that sliding contacts (3a) are property seated on contact arms (3)
7
Install in opposite order.
