CLK 430 Cabriolet (208.470) V8-4.3L (113.943) (2000)

Page 1
background image

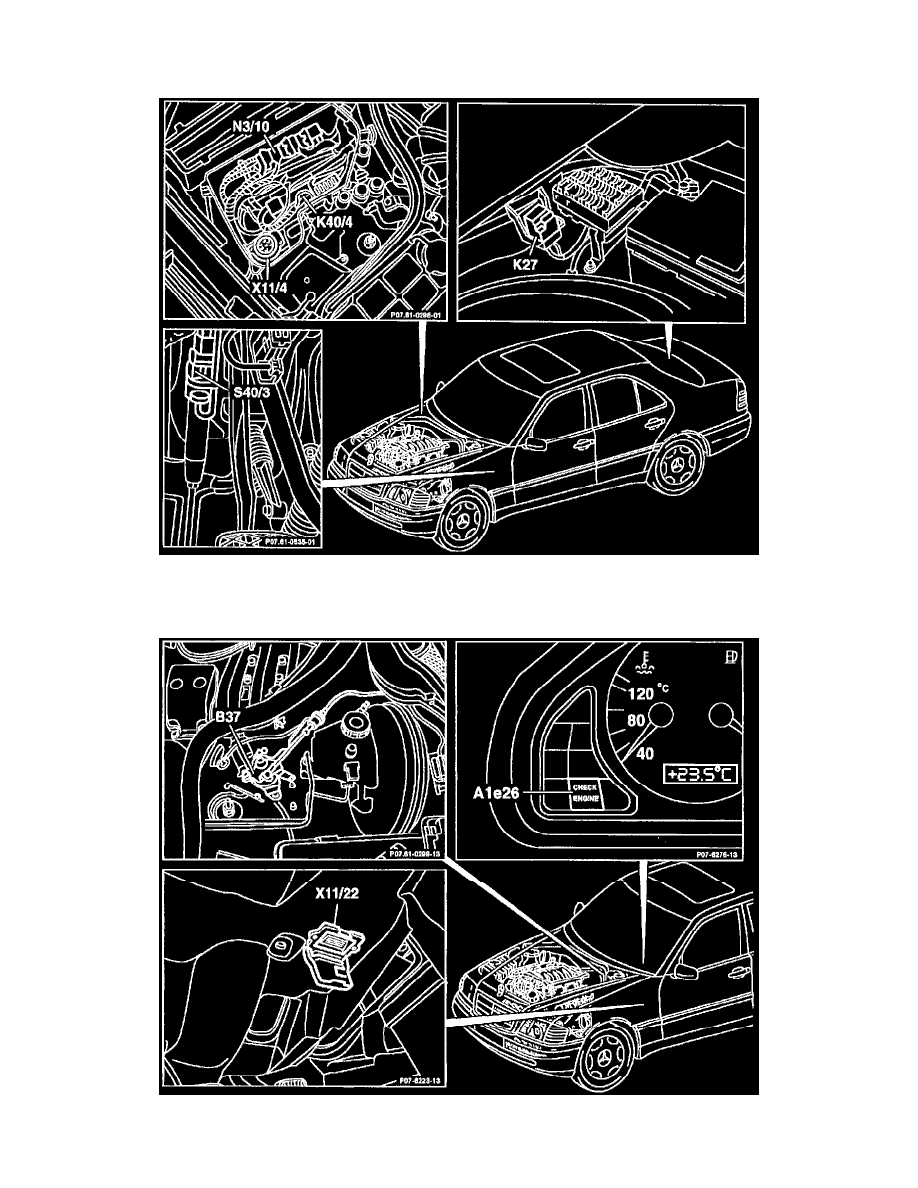

Data Link Connector: Locations
Diagnostic Socket

Data link connector (DTC readout) (38-pole)

X11/4

Data link connector (DTC readout) (38-pole)

X11/22

Diagnostic module (OBD II) generic scan tool connector (only (USA))
