CLK 500 Cabriolet (209.475) V8-5.0L (113.968) (2006)

  • Body and Frame
  • Relays and Modules - Body and Frame
  • Convertible Top Control Module
  • Component Information
  • Locations

Page 1
background image

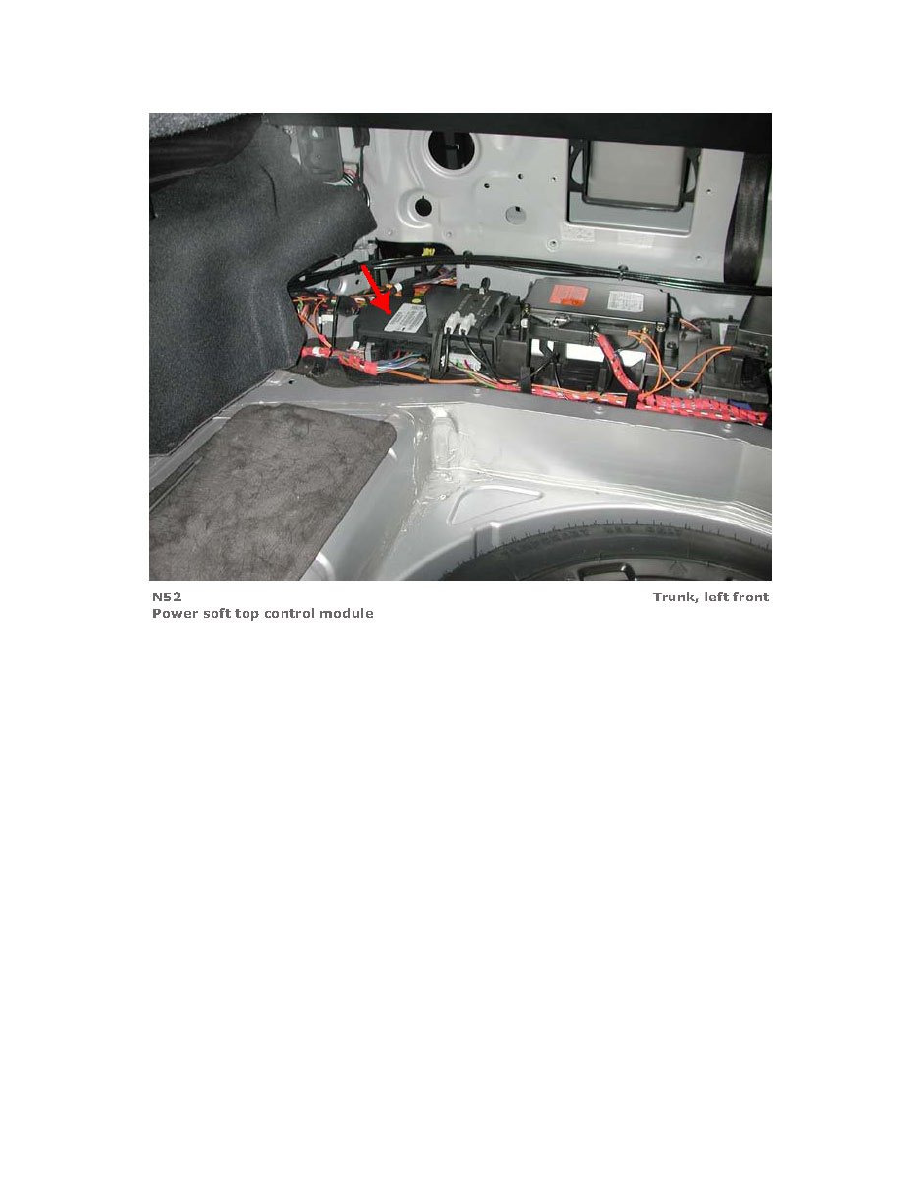

Convertible Top Control Module: Locations

Power Soft Top Control Module

Power Soft Top Control Module (View 1)
