E 300D (210.020) L6-3.0L DSL (606.912) (1996)

  • Lighting and Horns
  • Sensors and Switches - Lighting and Horns
  • Backup Lamp Switch
  • Component Information
  • Locations

Page 1
background image

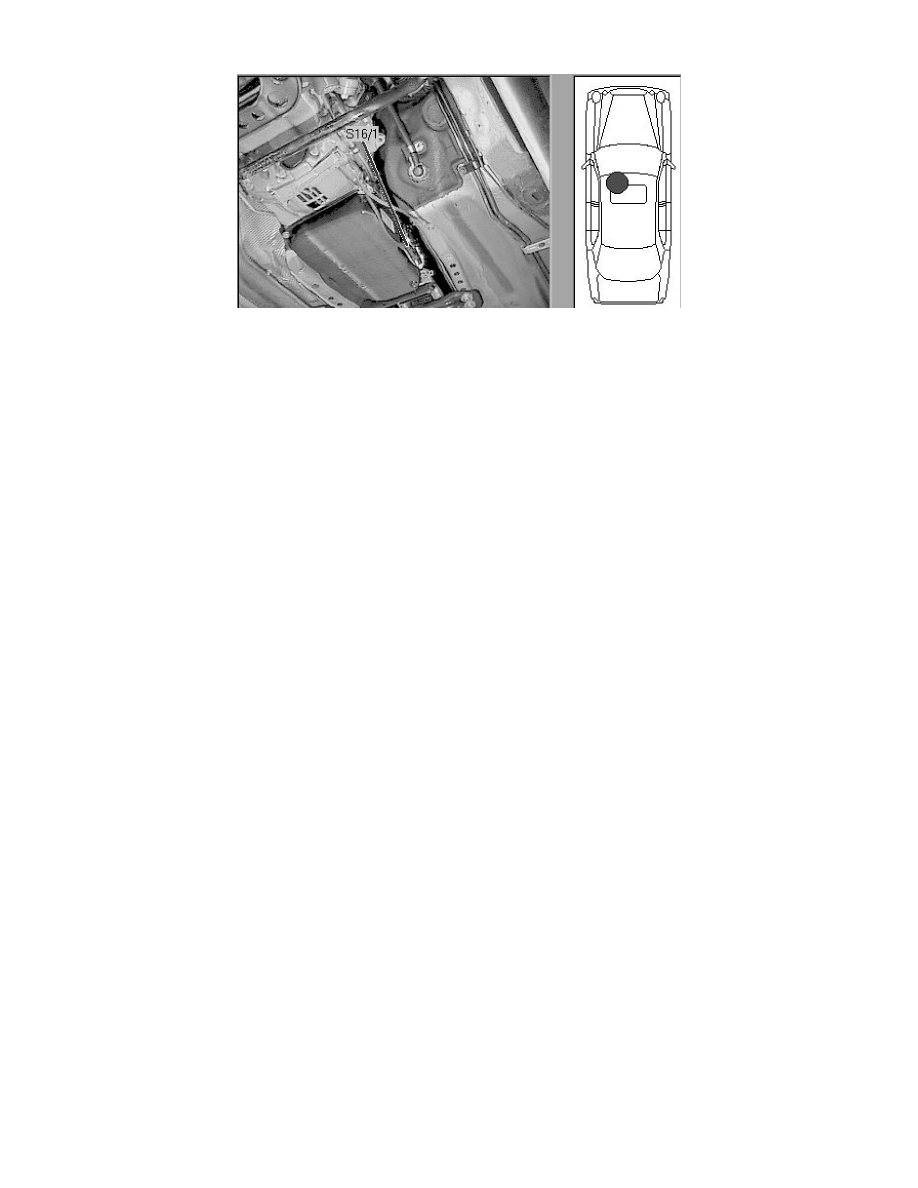

Backup Lamp Switch: Locations

On left side of transmission
