E 320 4MATIC Wagon (211.282) V6-3.2L (112.954) (2003)

Page 1
background image

Seat Bladder Reservoir: Service and Repair

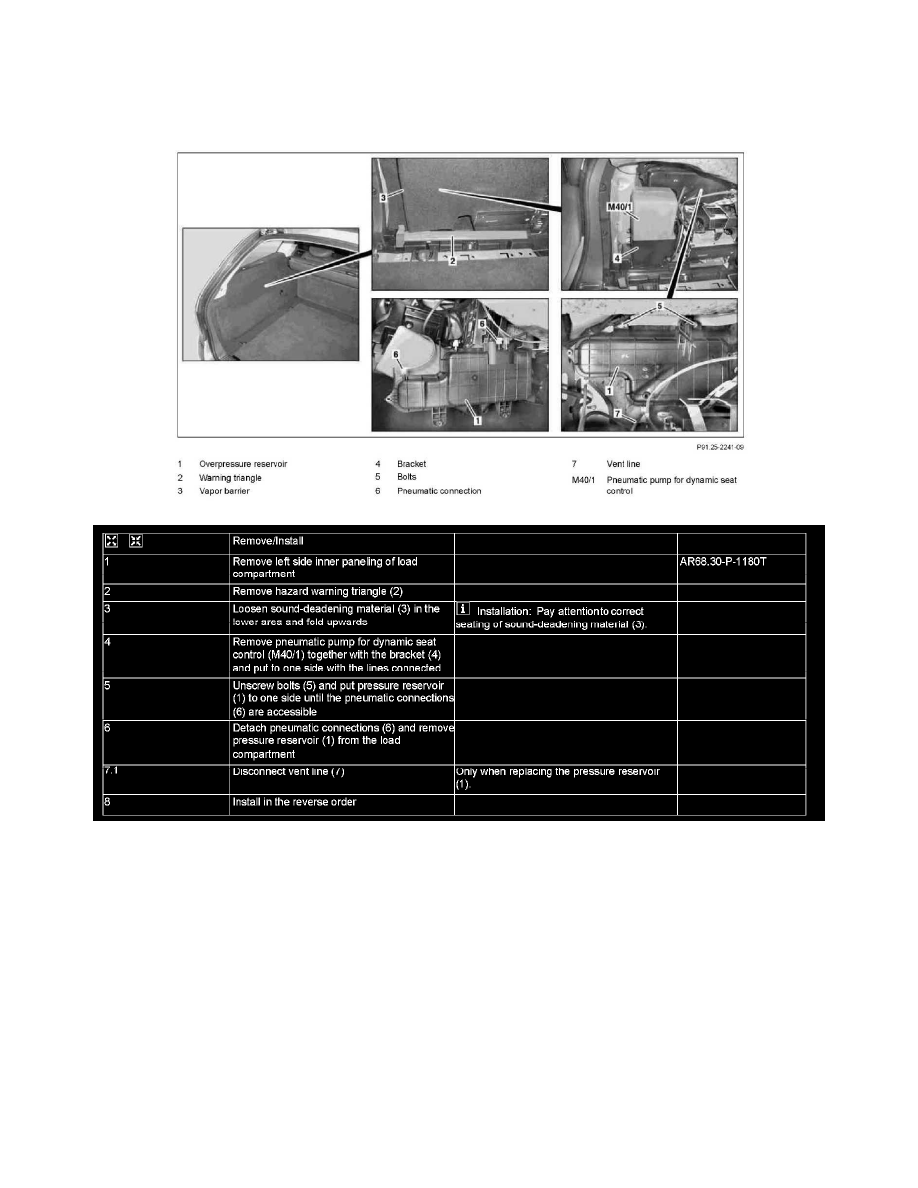

AR91.25-P-1570TA Remove/Install Overpressure Reservoir For Dynamic Seat Control

- with CODE (433) Left dynamic seat, incl. multicontour seat
- with CODE (434) Right dynamic seat, incl. multicontour seat
