Rear Door Window Glass Replacement for E 320 Coupe (1994)

Page 1
background image

Rear Door Window Glass: Service and Repair

Removal and installation of crank window on rear door

Removal, installation

1. Remove door lining.
2. Pull off plastic foil.

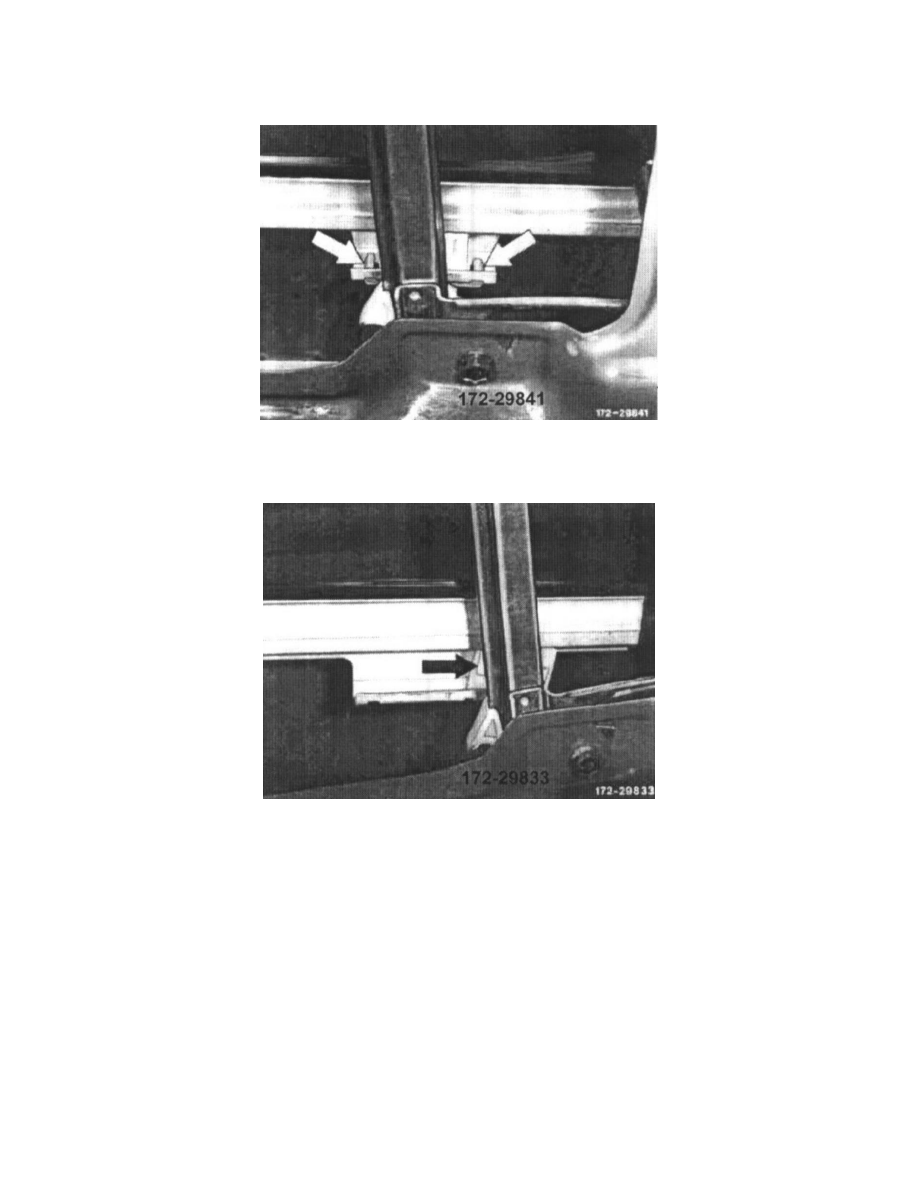

3. Remove safety bracket on window lifting rail.

4. Extend guide member from window lifting rail.
5. Lower window completely down.

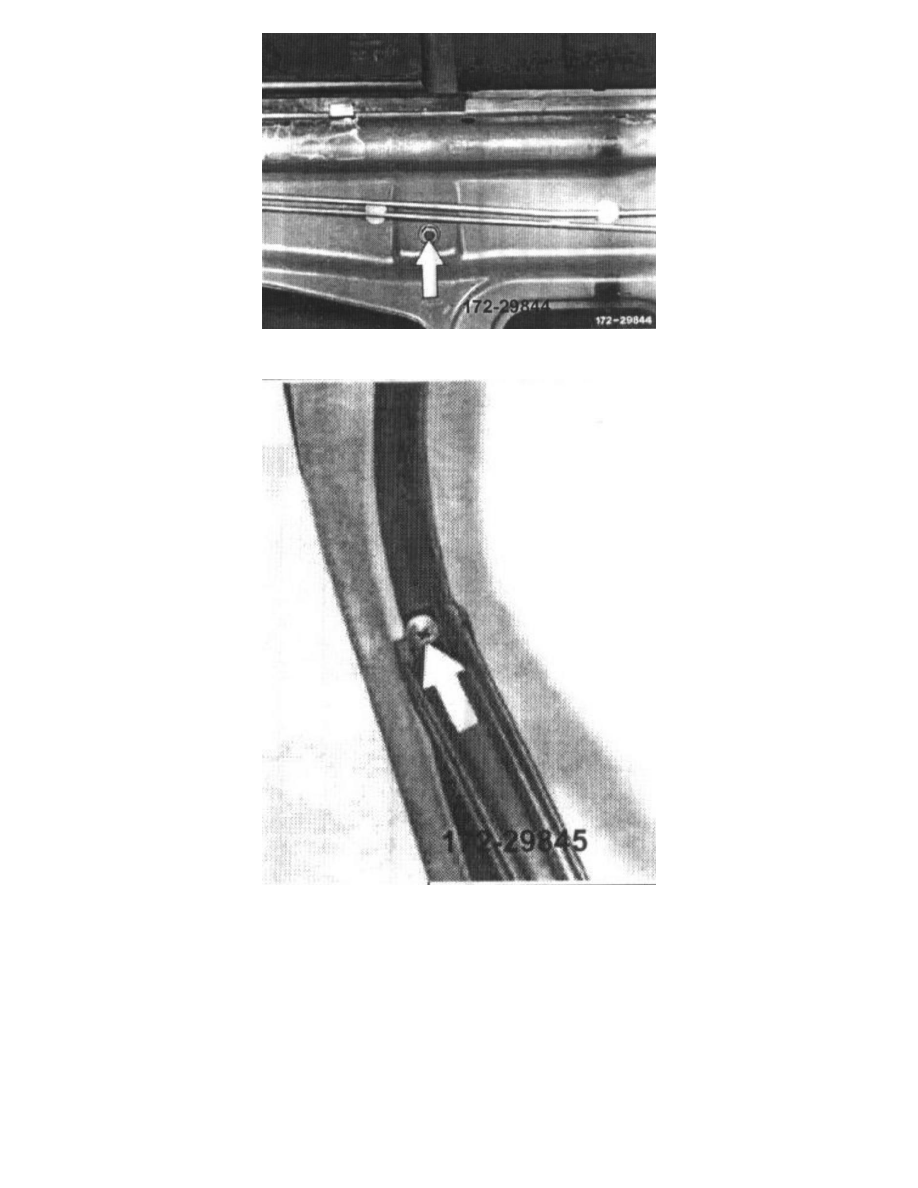

6. Remove sealing strip inside.
7. Remove flexible window running rail.
