E 320 Coupe (124.052) L6-3.2L (104.992) (1994)

Page 1
background image

Sunroof Control Cable Tube: Service and Repair

Removal:

1 Remove control cable. See: Sunroof / Moonroof Cable/Service and Repair

2 Remove motor and gear unit. See: Sunroof / Moonroof Motor/Service and Repair

3 Remove sun roof top panel.
4 Detach headlining starting from the rear up to sun roof cutout.
5 Pull damping from rear pillar left.

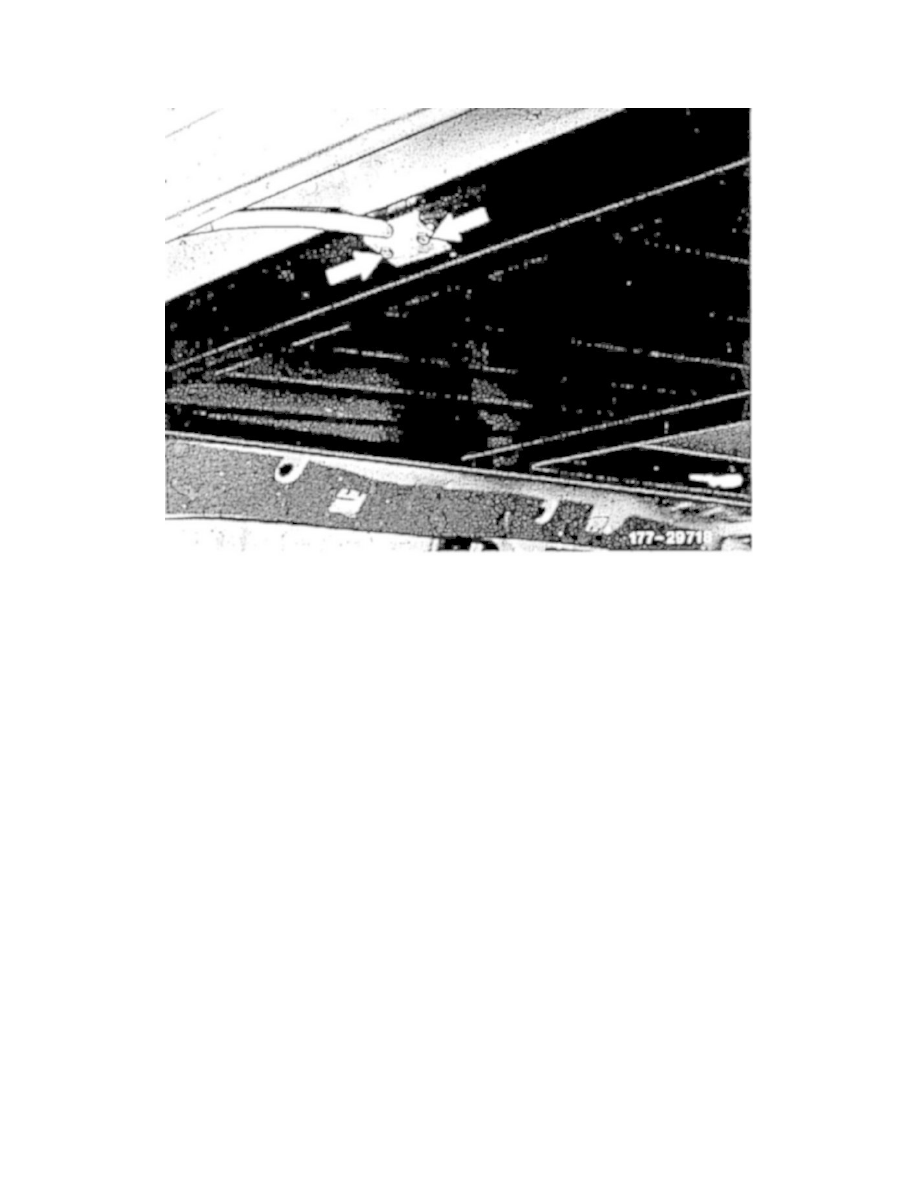

6 Unscrew holding plate on sun roof frame and force off cover above tube.
