Fan Shroud: Adjustments

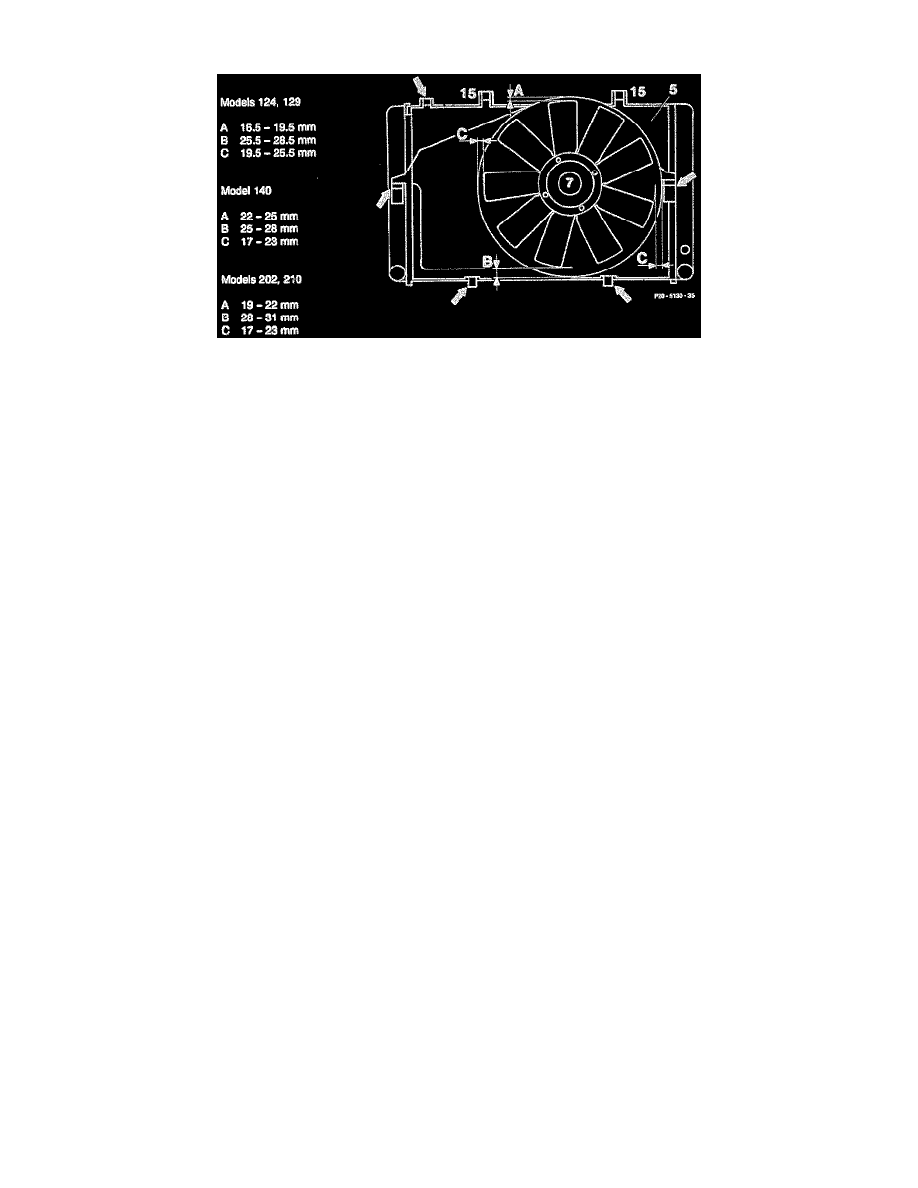

NOTE: Numbers in parentheses ( ) indicate a component or tool in the associated illustration.
Adjust fan shroud (5) relative to fan.
1. Pull flat shaped springs upward.
2. Adjust fan shroud (5) with fan shroud ring relative to fan (7) according to the sizes (A), (B) and (C)
A: 16.5 - 19.5 mm
B: 25.5 - 28.5 mm
C: 19.5 - 25.5 mm
3. Install flat shaped rings (15).
