A/C System - Modifications|Page 6442 > < A/C System - Modifications|Page 6440

E 320 Coupe (124.052) L6-3.2L (104.992) (1994)

Page 3
background image

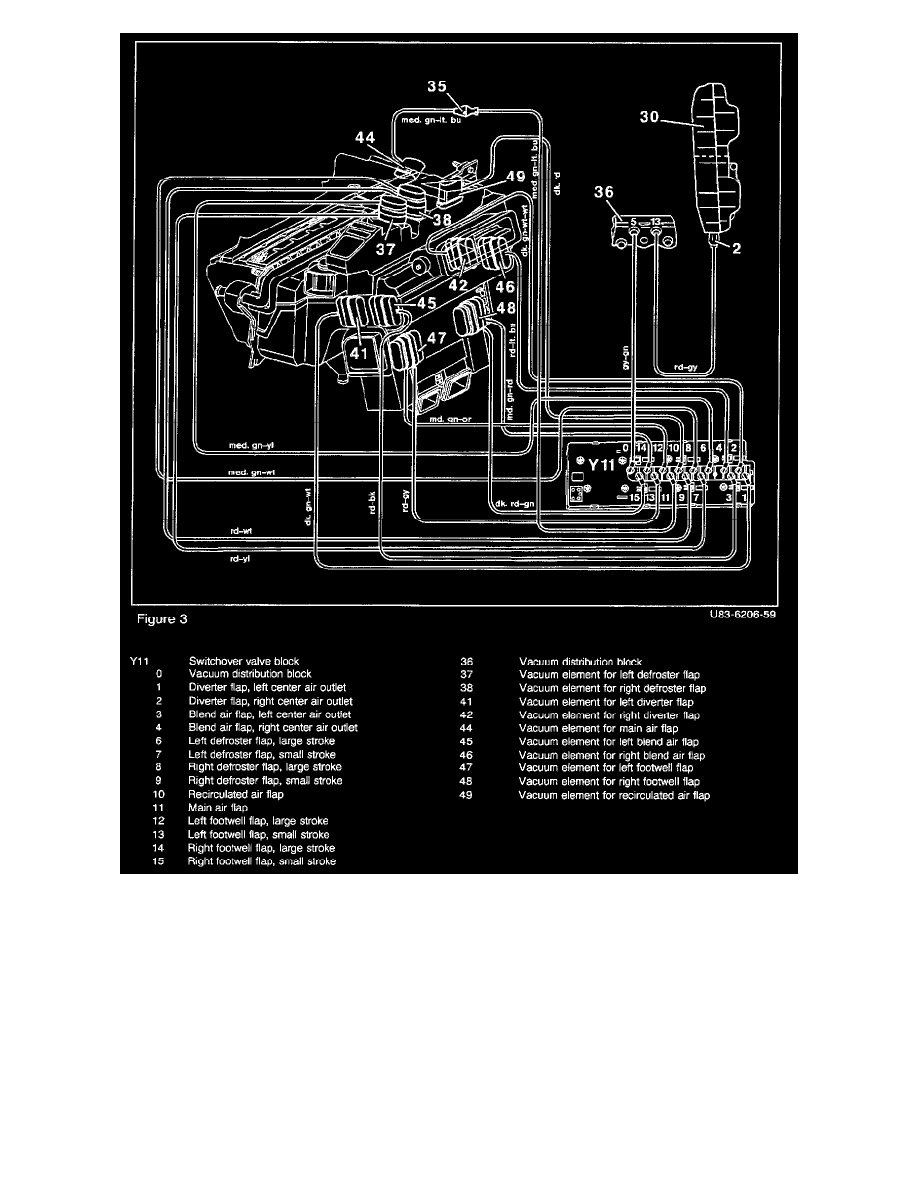

Vacuum diagram, vehicles as of A-182368

2.

Modified auxiliary fan preresistor (R15)
