E 320 Coupe (124.052) L6-3.2L (104.992) (1994)
/l6-3.2l_(104.992)/Page-1838001.png)
Control Assembly: Service and Repair

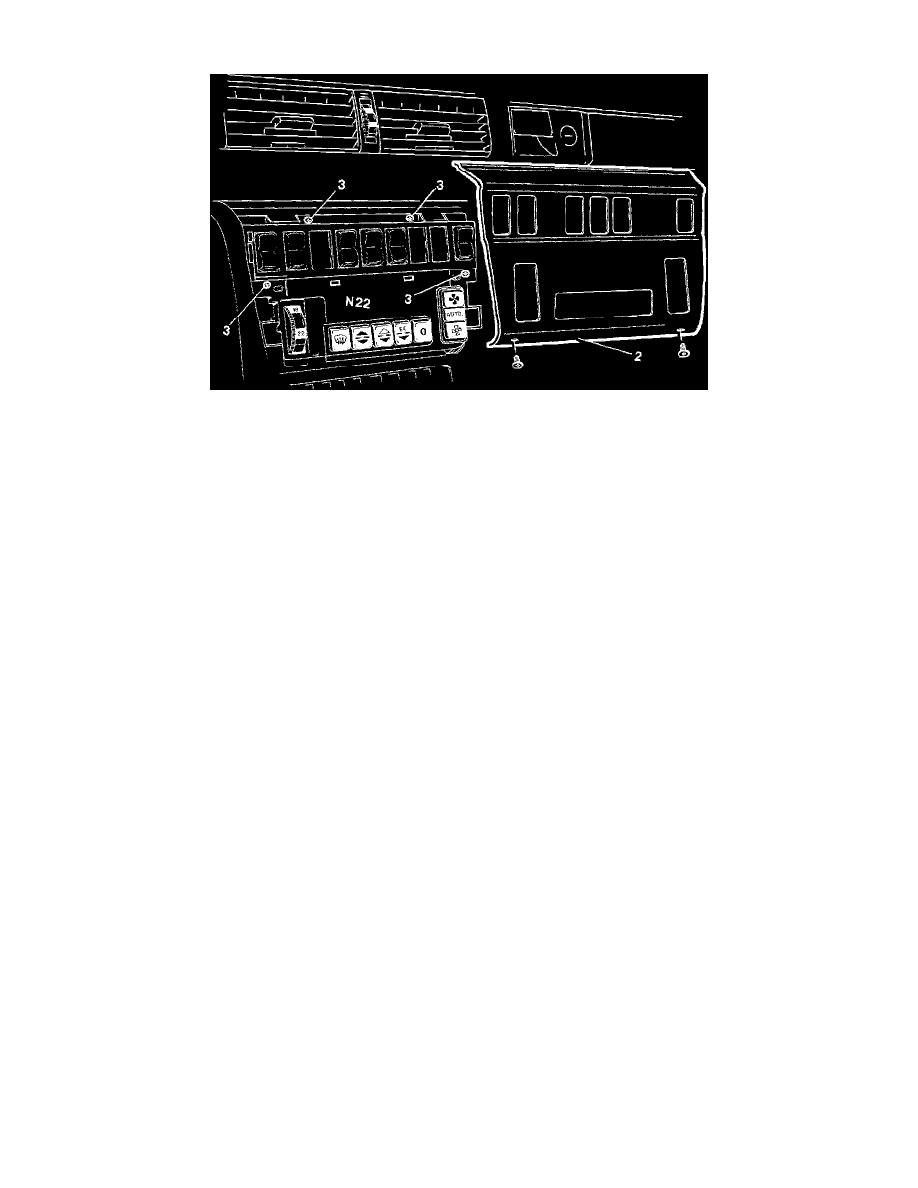

Automatic Climate Control R&R
Cover (2) .................................................................................................................................................................................................................. Remove
Screws (3) ............................................................................................................................................................................................................... Unscrew
Control Unit (N22) .................................................................................................................................................. Pull out and disconnect both couplings
In reverse order ........................................................................................................................................................................................................... Install
Installation Instruction
Before pressing on the two couplings, check all sleeves for proper contact, correct by bending if required.
