E 320 Coupe (124.052) L6-3.2L (104.992) (1994)

Page 1
background image

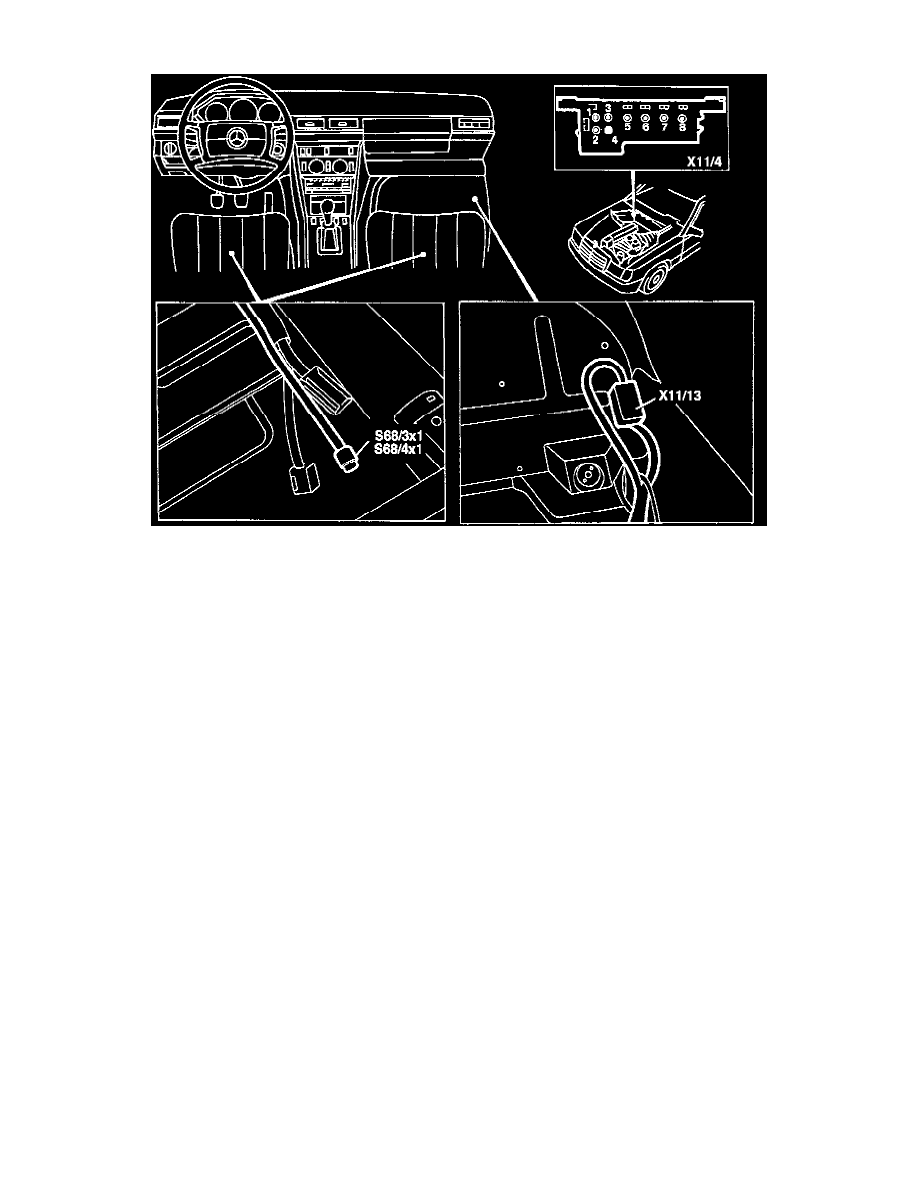

SRS Diagnostic Connector (Impulse Readout): Locations

X92 or X11/4

Data link connector (8 or 16-pole)
