E 430 4MATIC (210.083) V8-4.3L (113.940) (2000)

Page 1
background image

Coolant Temperature Sensor/Switch (For Computer): Locations

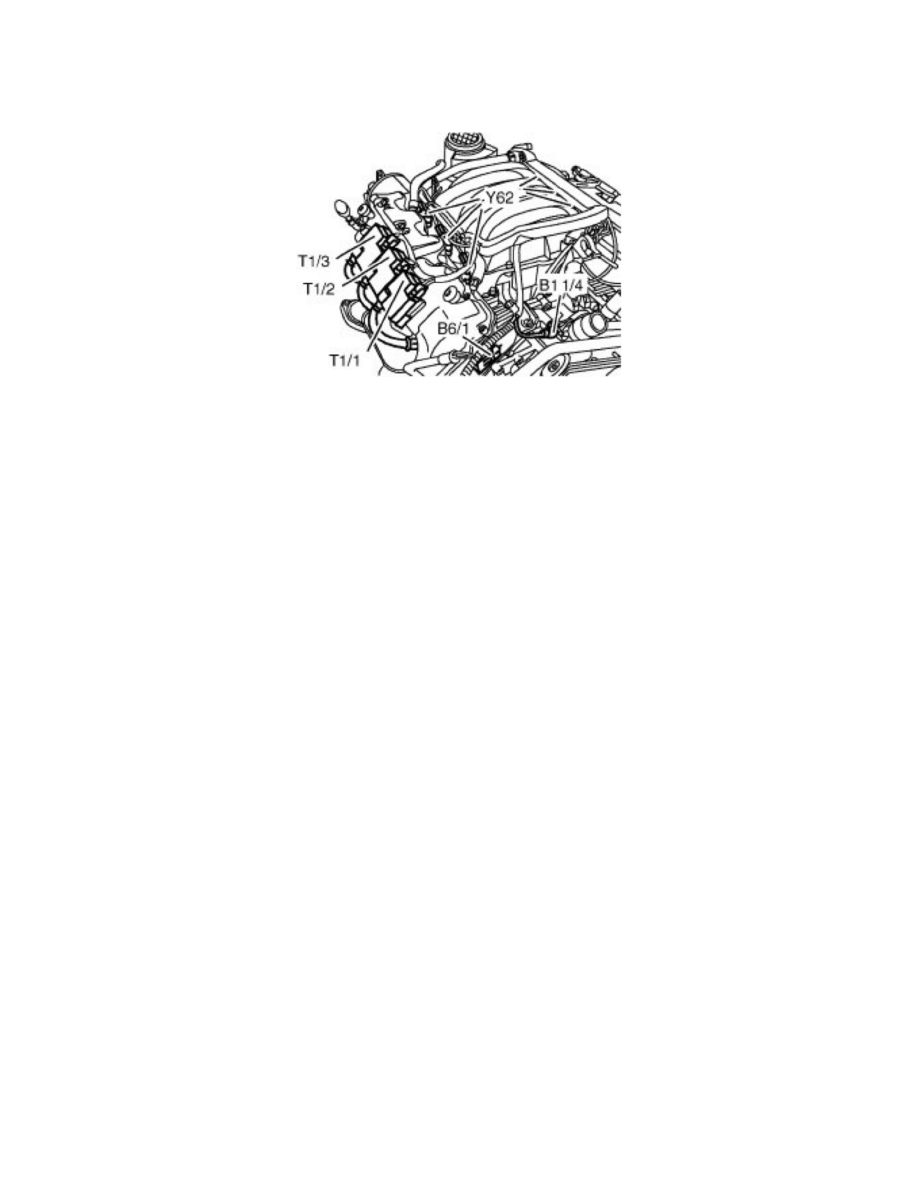

Coolant Temperature Sensor, Location

Coolant Temperature Sensor, Position

B11/4

Coolant temperature sensor
