E 430 4MATIC (210.083) V8-4.3L (113.940) (2000)

Page 1
background image

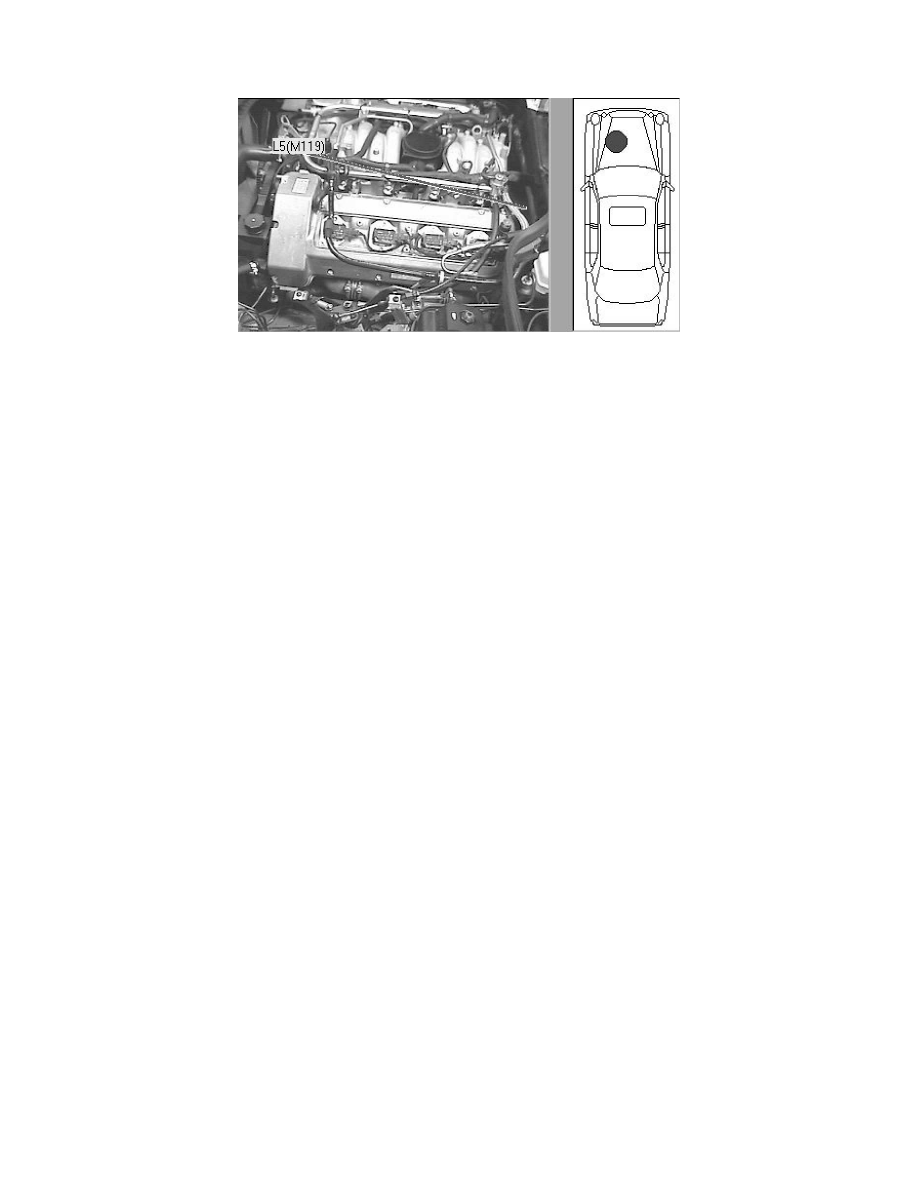

Crankshaft Position Sensor: Locations
CKP Sensor - L5

Engine compartment, left side of engine (hidden)
