E 550 Coupe (207.372) V8-5.5L (273.966) (2010)
/v8-5.5l_(273.966)/Page-1822001.png)
Rear Vision Camera: Procedures
AN54.65-P-0030-01EC Retrofit Backup Camera Control Unit
AN54.65-P-0030-01EC Retrofit Backup Camera Control Unit
- with CODE (512) COMAND APS with DVD changer
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- except CODE (460) Canada version

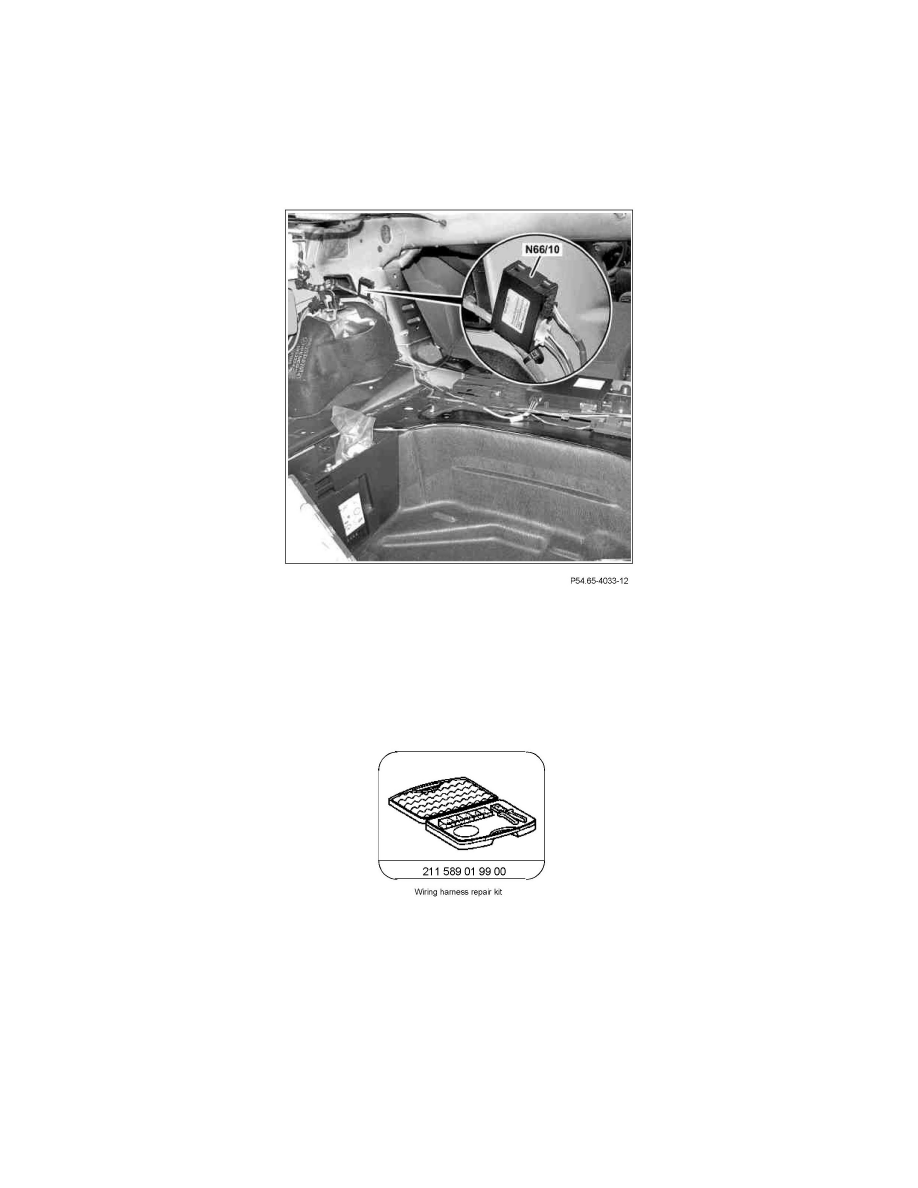

1. Clip in reversing camera power supply module (N66/10), as shown, clip in over the inner rear wheel well on the left side of vehicle in the trunk.
Use the clip included in the installation kit.
AN54.65-P-0030-03EC Retrofit Backup Camera Wiring Harness
AN54.65-P-0030-03EC Retrofit Backup Camera Wiring Harness
- with CODE (512) COMAND APS with DVD changer
- with CODE (527) COMAND APS with single DVD drive (with navigation)
Special Tools
