E 550 Coupe (207.372) V8-5.5L (273.966) (2010)

Page 1
background image

Seat Bladder: Service and Repair
AR91.25-P-1770CW Remove/Install Multicontour Backrest Seat Cushion Air Cushion

AR91.25-P-1770CW Remove/Install Multicontour Backrest Seat Cushion Air Cushion

- with CODE (409) Left/right front multicontour seats

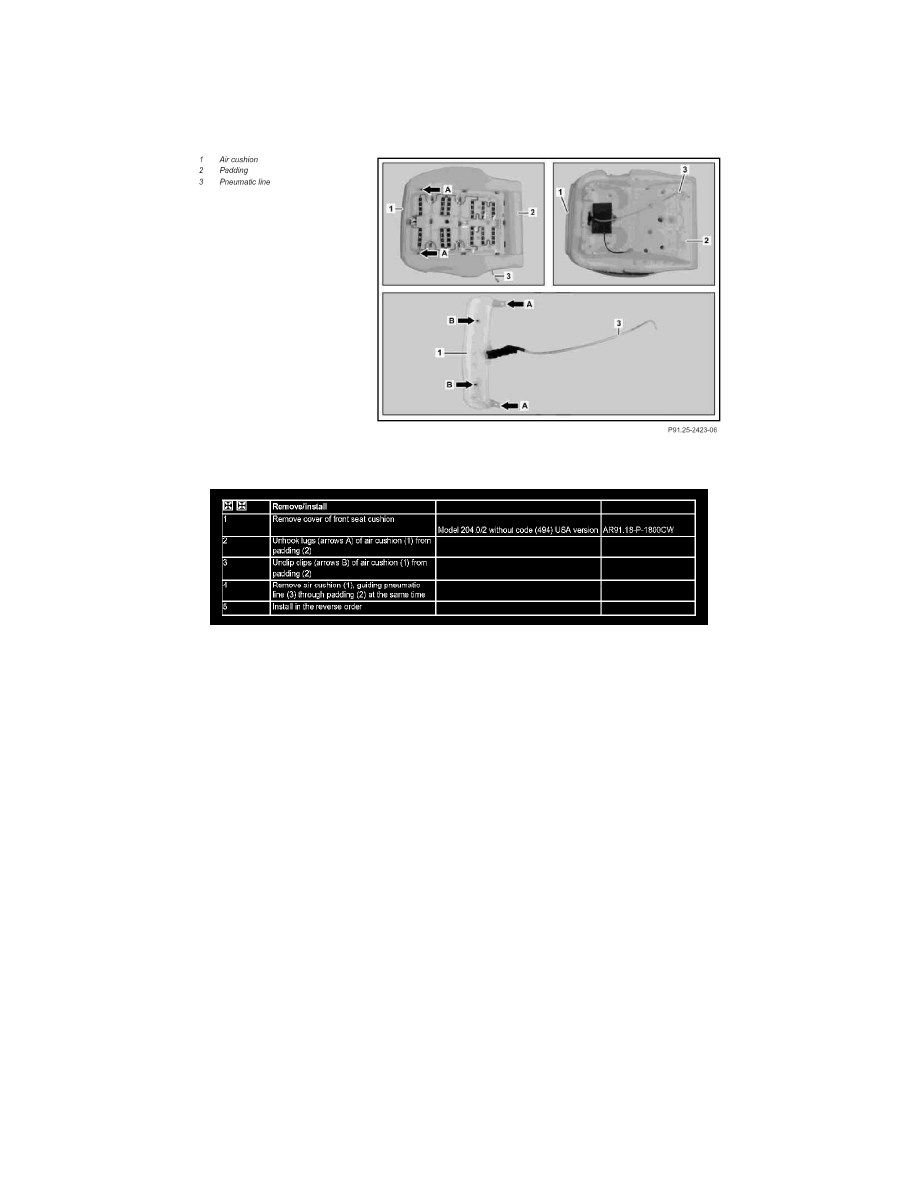

Component Identification

Steps 1 - 5
