Parking Brake Shoe|Adjustments|Page 4529 > < AR42.20-P-0510EW Remove/Install Parking Brake Pedal Assembly|Page 4525

E 550 Coupe (207.372) V8-5.5L (273.966) (2010)

Page 1
background image

Parking Brake Shoe: Adjustments

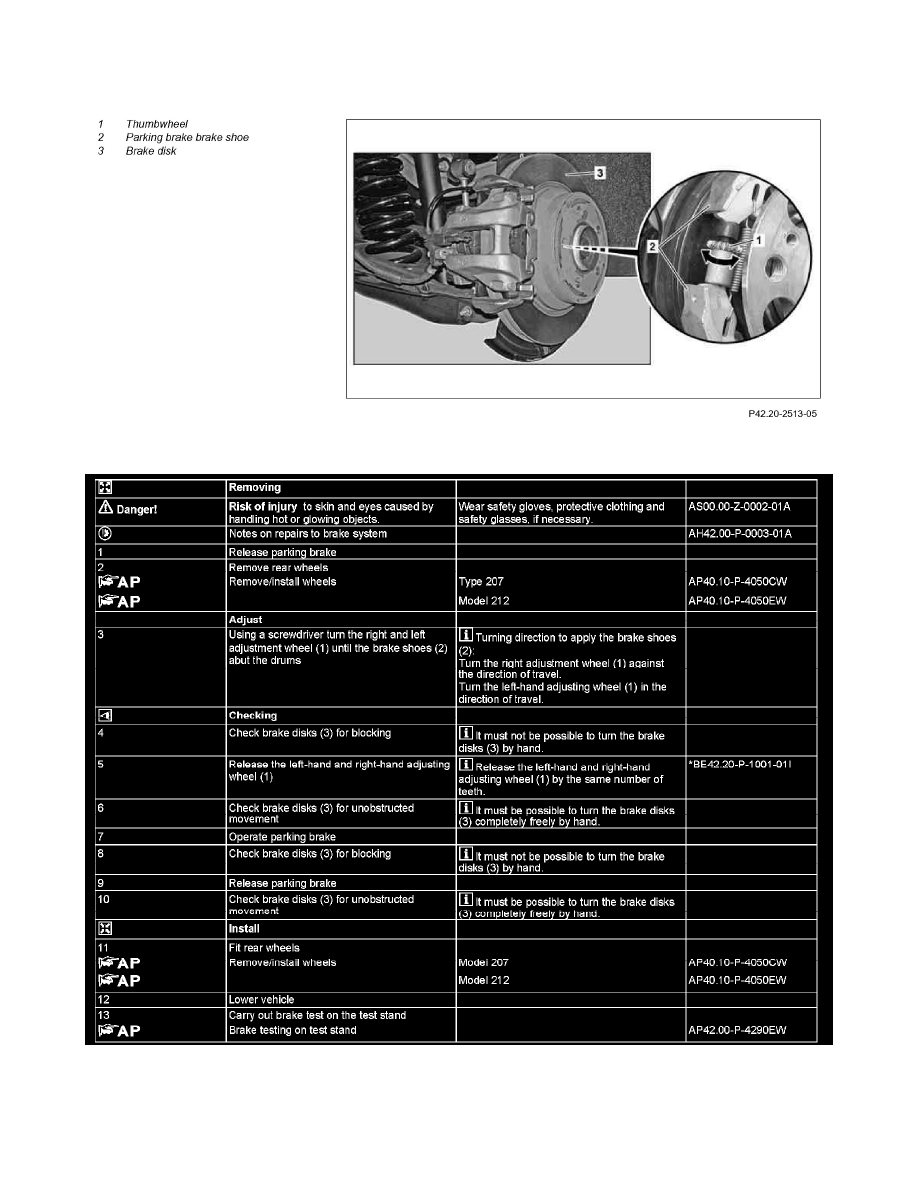

AR42.20-P-0540EW Adjust parking brake

Component Identification

Steps 1-13

Parking Brake Shoe|Adjustments|Page 4529 > < AR42.20-P-0510EW Remove/Install Parking Brake Pedal Assembly|Page 4525
