E 550 Coupe (207.372) V8-5.5L (273.966) (2010)

Page 1
background image

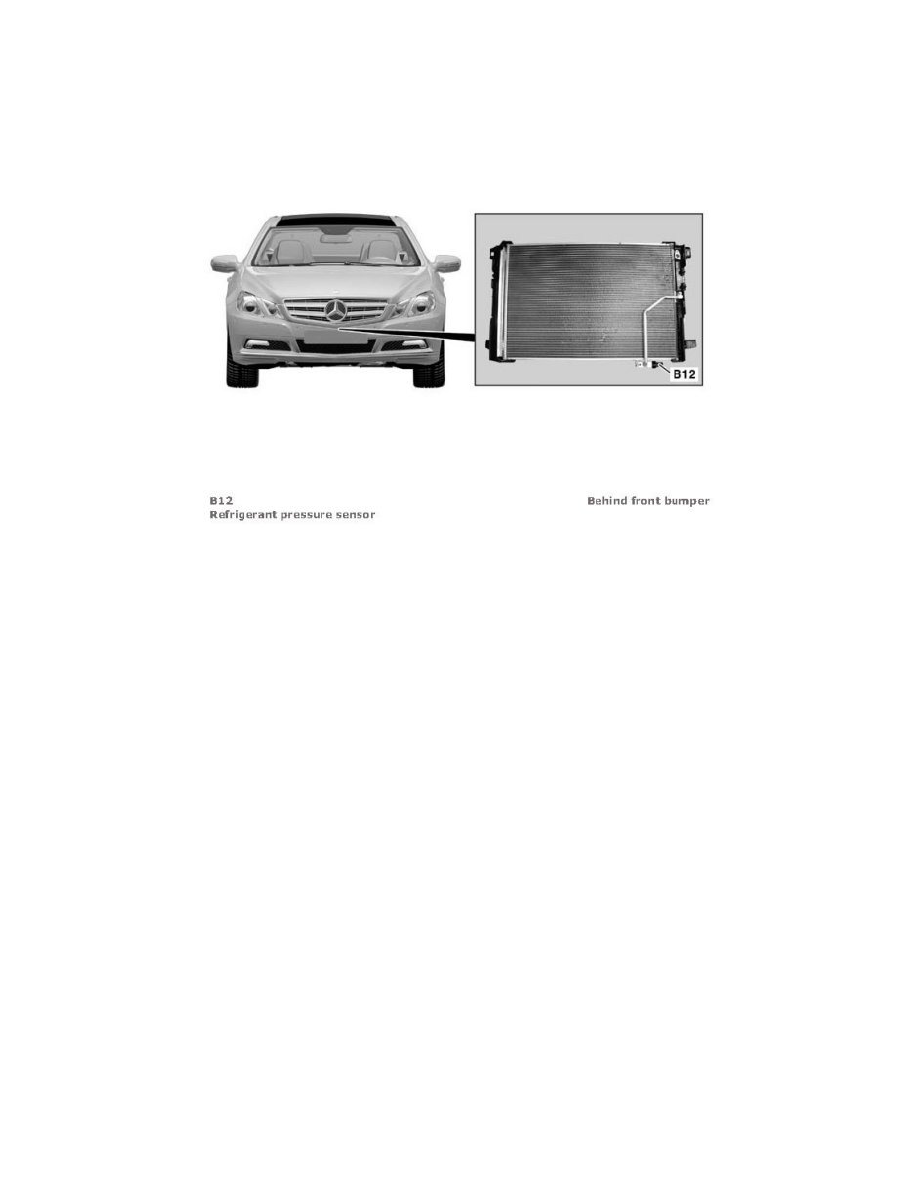

Refrigerant Pressure Sensor / Switch: Locations

Refrigerant Pressure Sensor

Refrigerant Pressure Sensor
