Auxiliary Power Outlet: Service and Repair

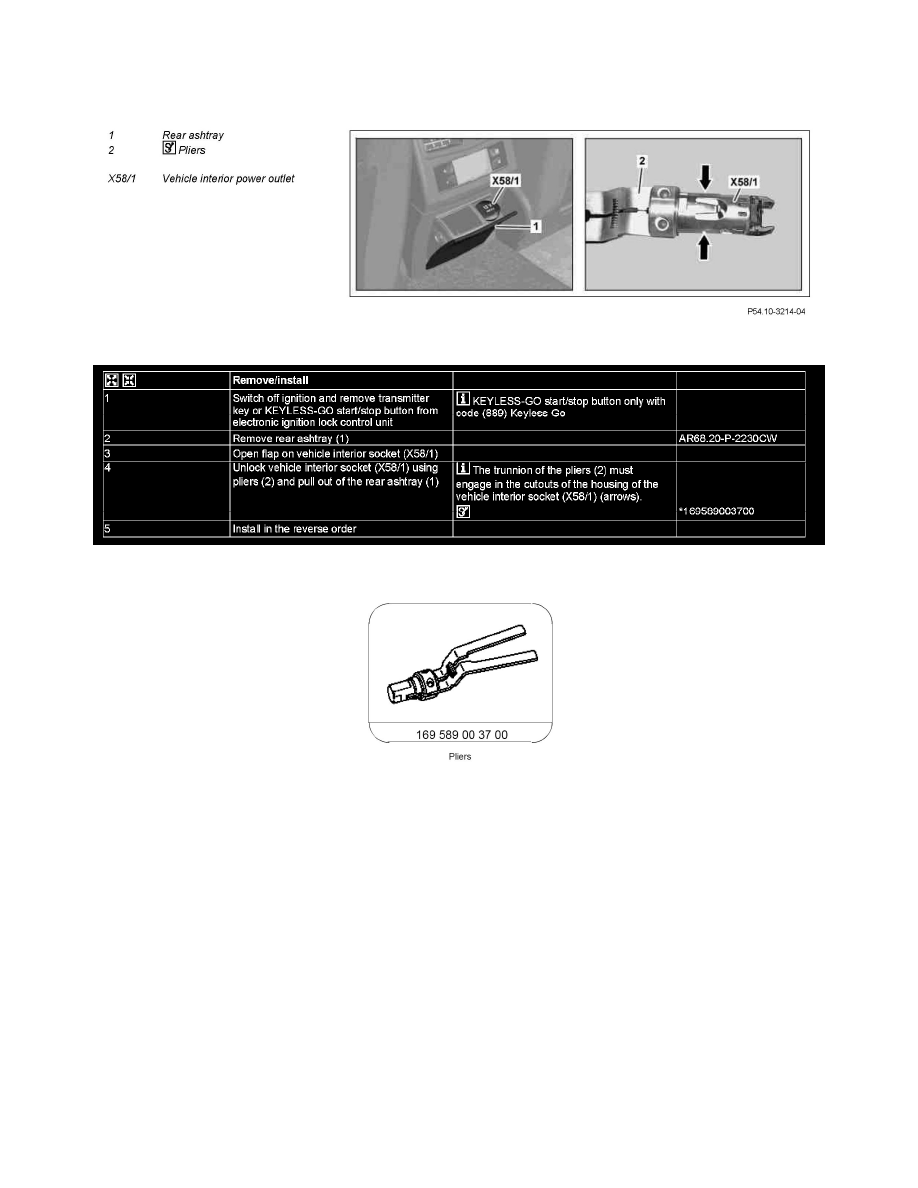

AR54.10-P-1000EC Remove/install 12 Volt Socket

-

with CODE (301) Ashtray package/smoker package

Component Identification

Steps 1-5

Special Tools
