E 550 Coupe (207.372) V8-5.5L (273.966) (2010)

Page 1
background image

Feedback Control Module: Locations
Nitrogen Oxides Control Unit, Left

Nitrogen Oxides Control Unit, Left

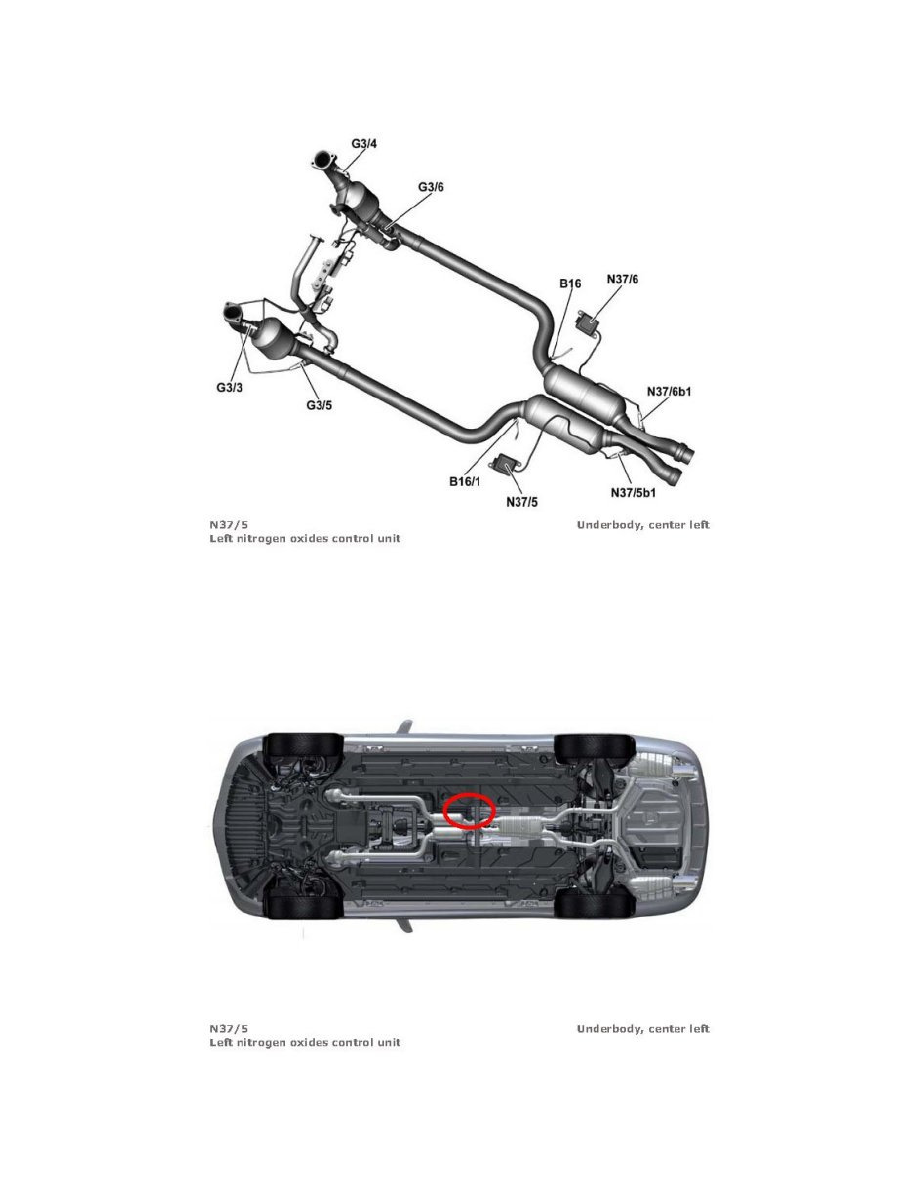

Left Nitrogen Oxides Control Unit (View 1)

Left Nitrogen Oxides Control Unit (View 2)
