E 550 Coupe (207.372) V8-5.5L (273.966) (2010)

Page 1
background image

Variable Induction Position Sensor: Locations
Intake Manifold Tumble Flap Position Sensor, Left

Intake Manifold Tumble Flap Position Sensor, Left

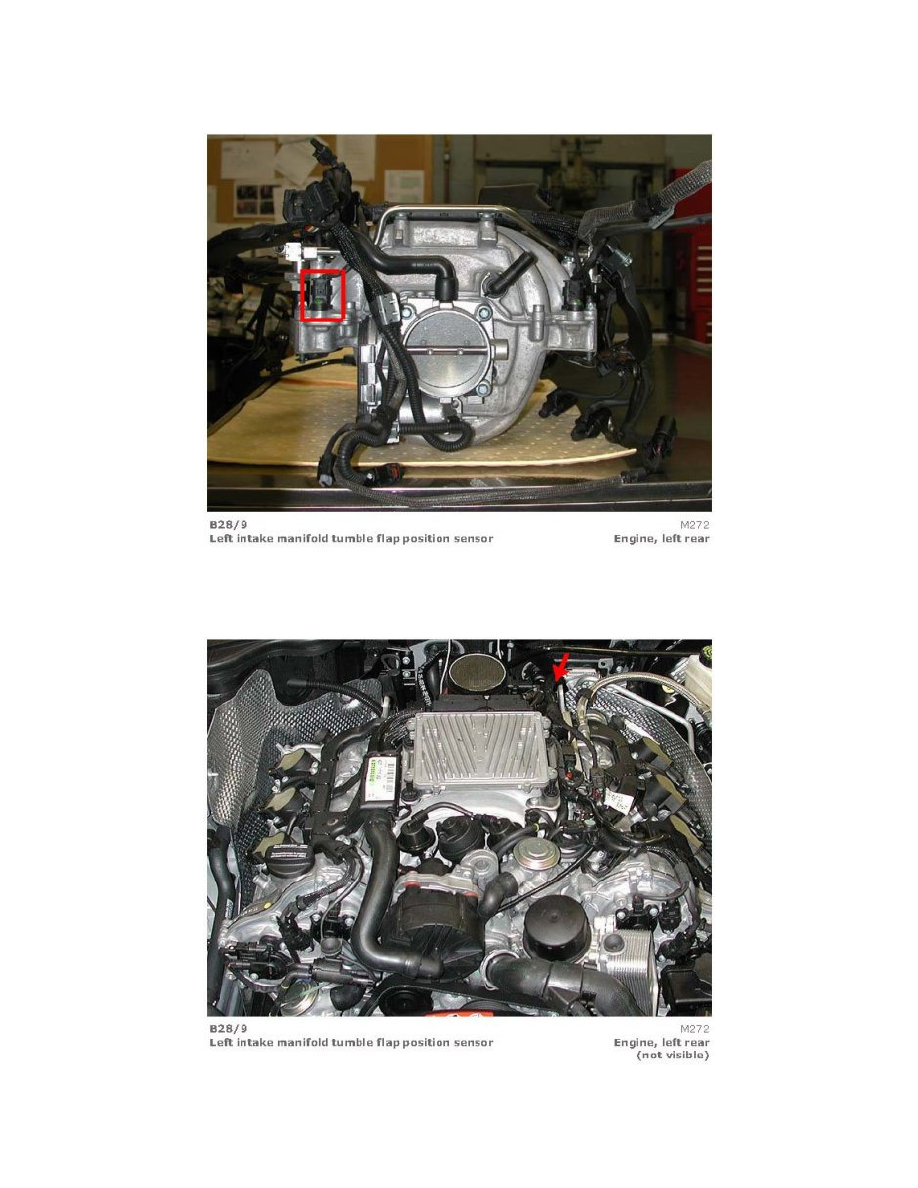

Left Intake Manifold Tumble Flap Position Sensor (View 1)

Left Intake Manifold Tumble Flap Position Sensor (View 2)
