E 550 Coupe (207.372) V8-5.5L (273.966) (2010)
/v8-5.5l_(273.966)/Page-952001.png)
Camshaft Position Sensor: Locations
Intake Camshaft Hall Sensor, Left
Intake Camshaft Hall Sensor, Left

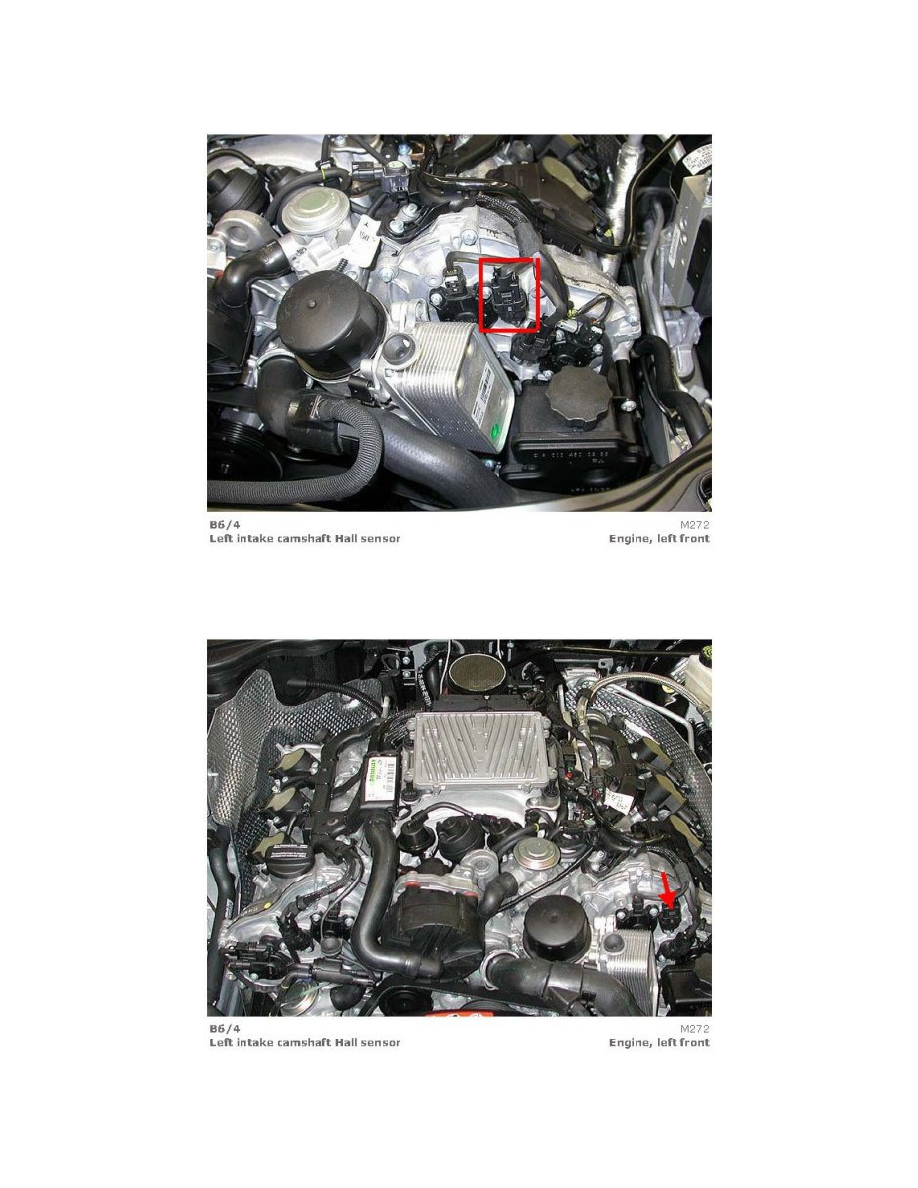

Left Intake Camshaft Hall Sensor (View 1)
Left Intake Camshaft Hall Sensor (View 2)
