E 550 Coupe (207.372) V8-5.5L (273.966) (2010)

Page 1
background image

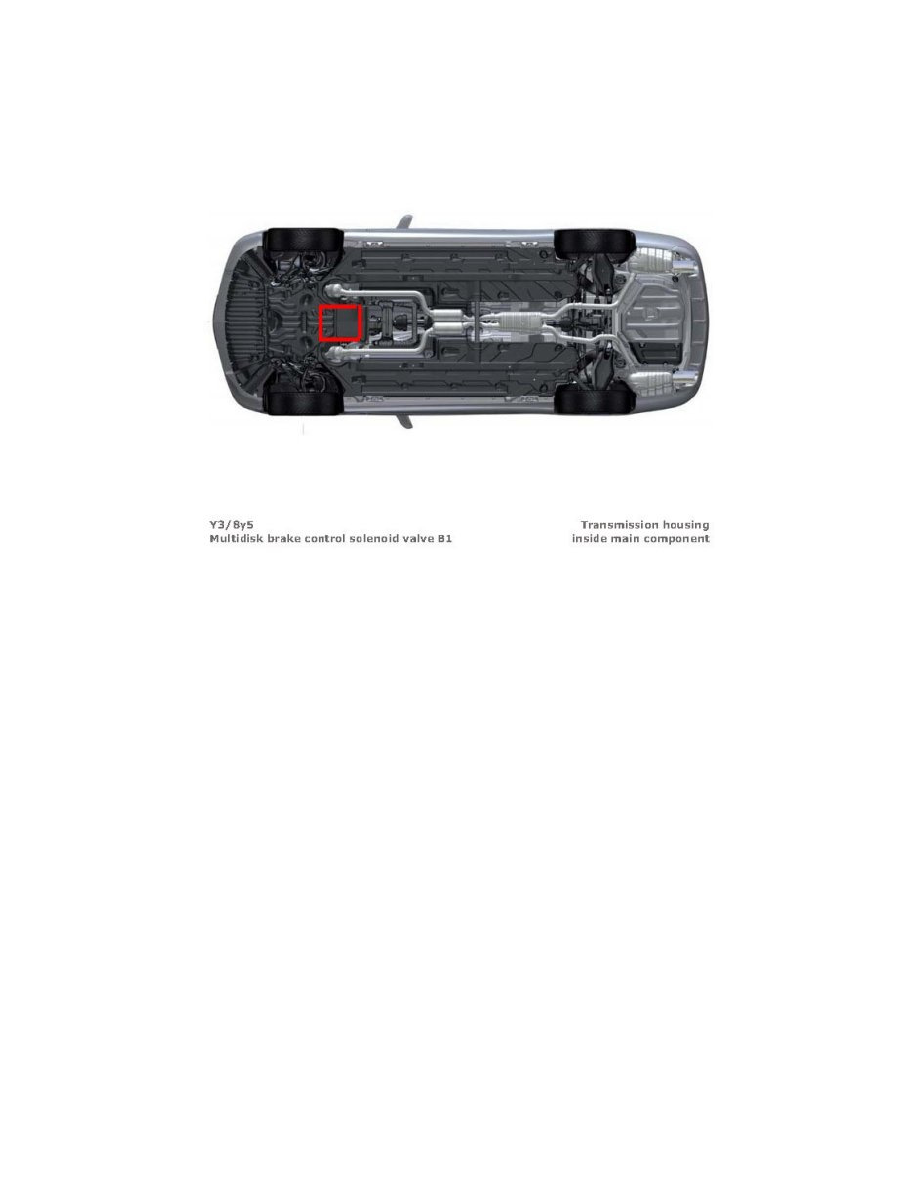

Shift Solenoid: Locations
Multidisk Brake Control Solenoid Valve B1

Multidisk Brake Control Solenoid Valve B1

Multidisk Brake Control Solenoid Valve B1
