E 55 AMG Sedan (211.076) V8-5.5L SC (113.990) (2003)

Page 1
background image

Camshaft Position Sensor: Locations
Camshaft Hall Sensor

Camshaft Hall Sensor

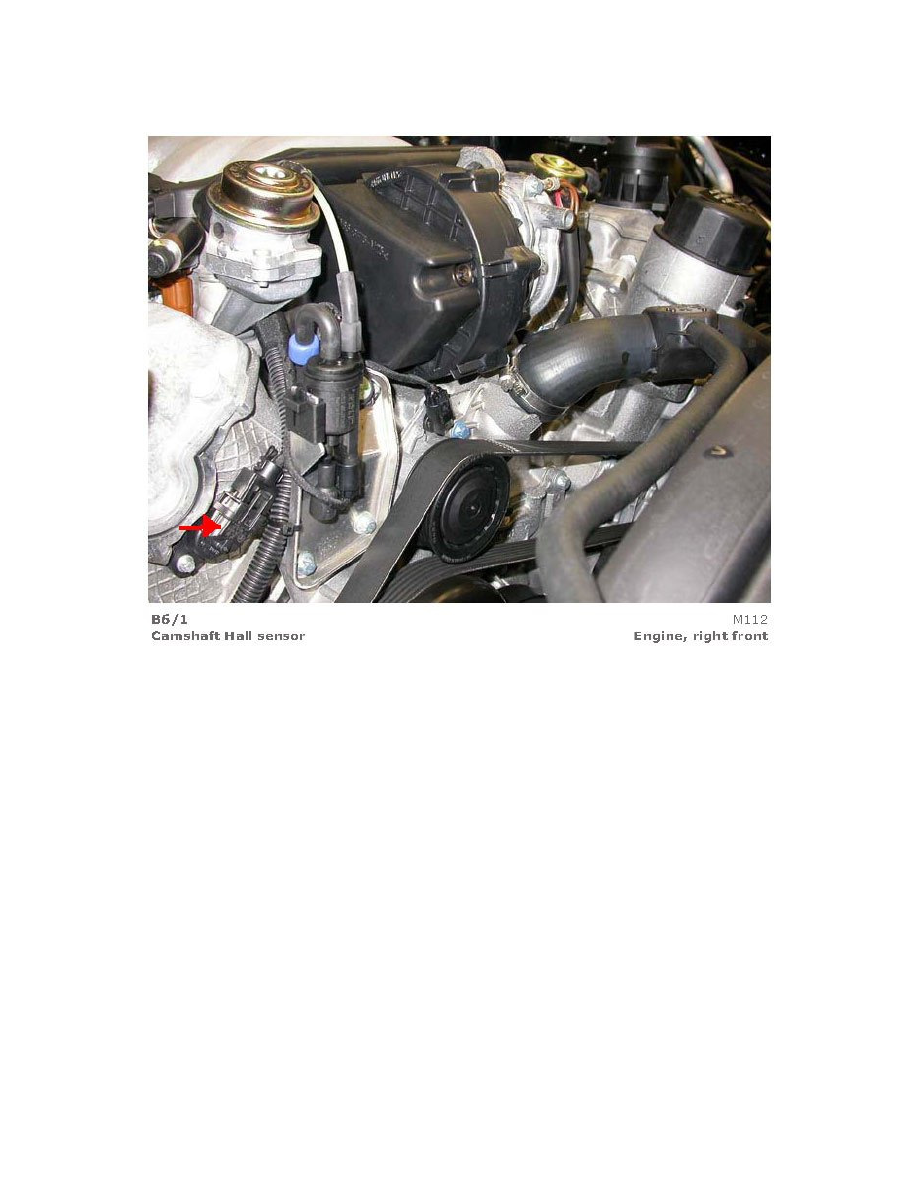

Camshaft Hall Sensor (View 1)
