Control Assembly: Description and Operation
GF83.40-P-3000FLA Component Description For Automatic Air Conditioning Control and
Operating Unit
GF83.40-P-3000FLA Component Description For Automatic Air Conditioning Control And Operating Unit
- except CODE (581) Comfort automatic air conditioning
Component Identification
Component Identification
Location
The control and operating unit is located in the instrument panel.
Design

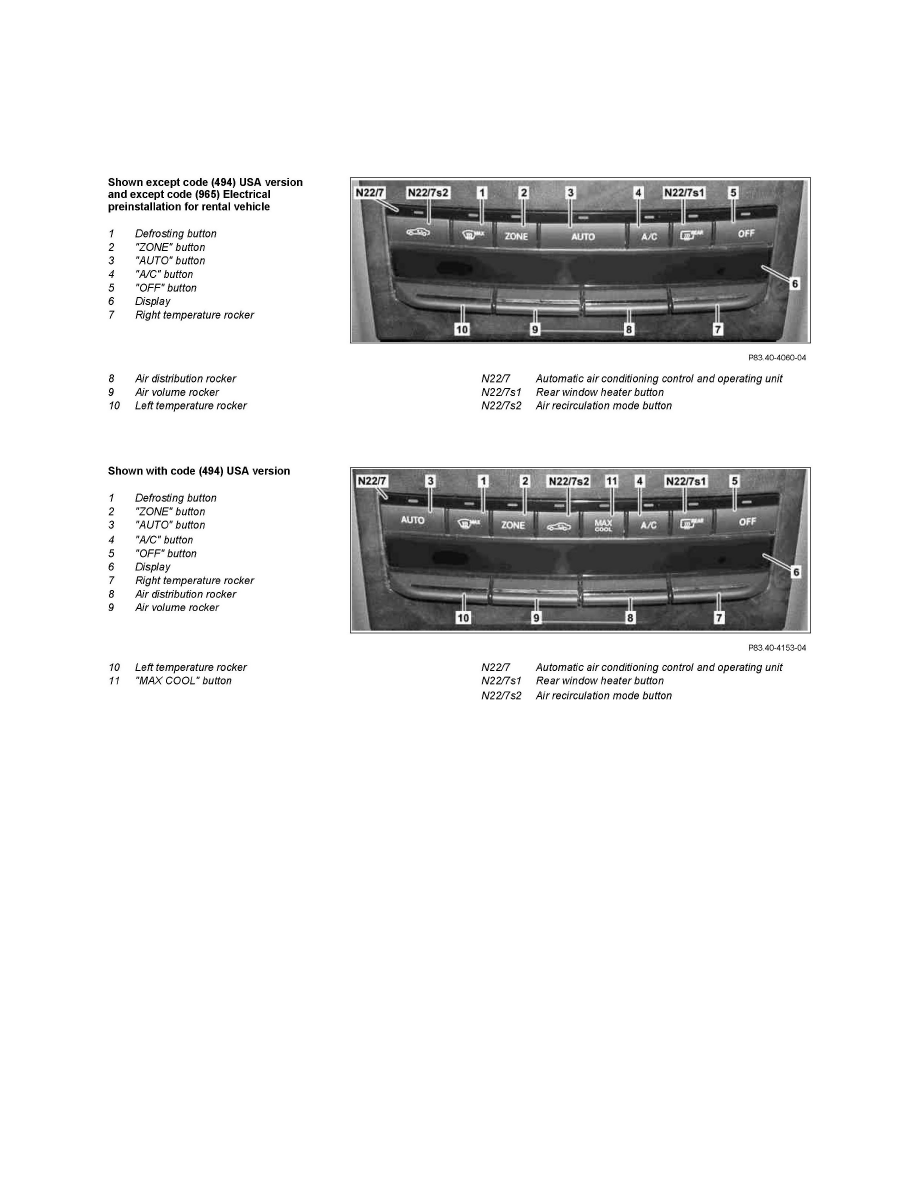

The control and operating unit contains the following controls and displays:
-
Defroster button
-
"ZONE" button
-
"AUTO" button
-
"A/C" button (without code (965) Electrical preinstallation for rental vehicle)
-
"OFF" button
-
Display
-
Right temperature rocker
-
Air distribution rocker
-
Air volume rocker
-
Left temperature rocker
-
"MAX COOL" button (with code (494) USA version)
-
Rear window heater button
-
Air recirculation mode button
With code (965) Electrical preinstallation for rental vehicle, the residual engine heat utilization function is also present. Instead of the "A/C" button,
the "A/C, REST" button is installed.
