GL 320 CDI (164.822) V6-3.0L DSL Turbo (642.940) (2008)

Page 1
background image

Brake Pressure Switch: Locations

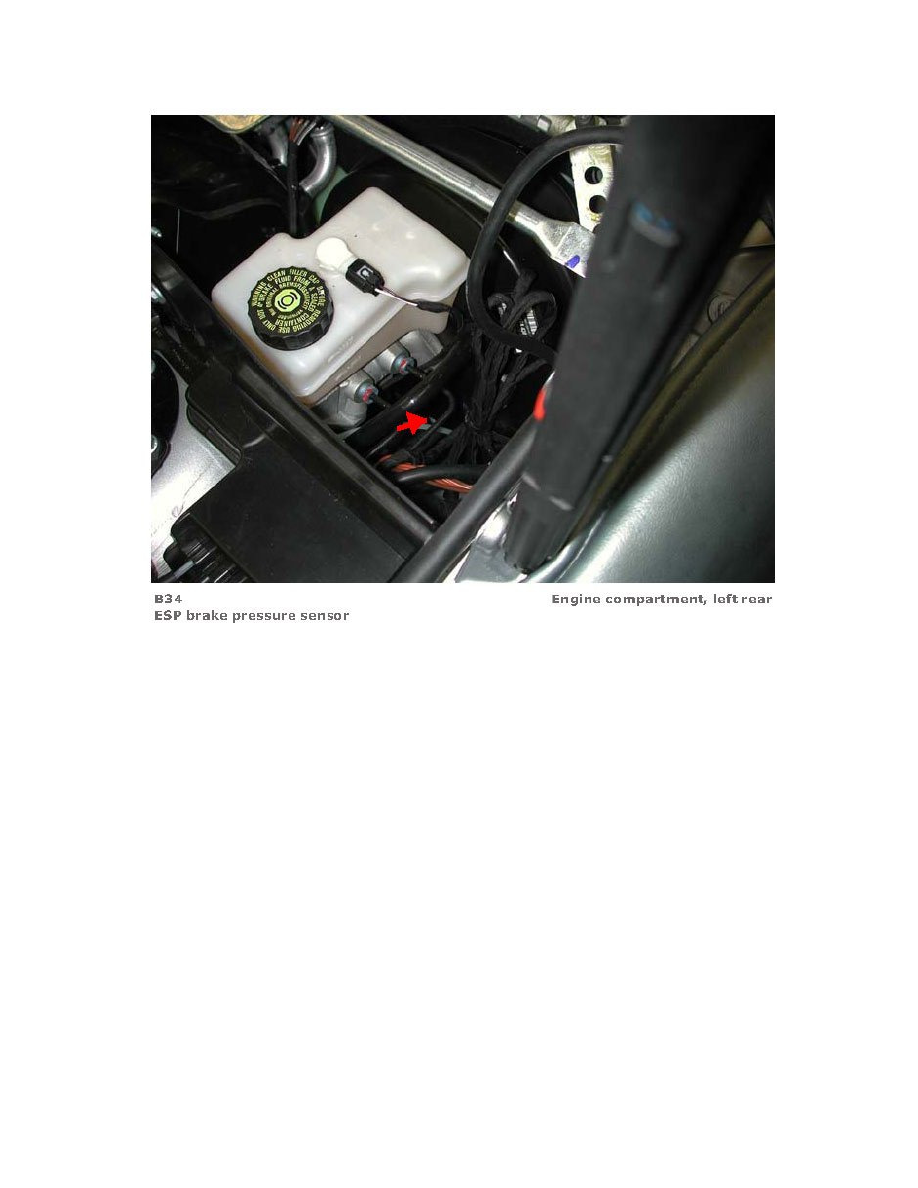

ESP Brake Pressure Sensor

ESP Brake Pressure Sensor (View 1)
