GL 320 CDI (164.822) V6-3.0L DSL Turbo (642.940) (2008)

Page 1
background image

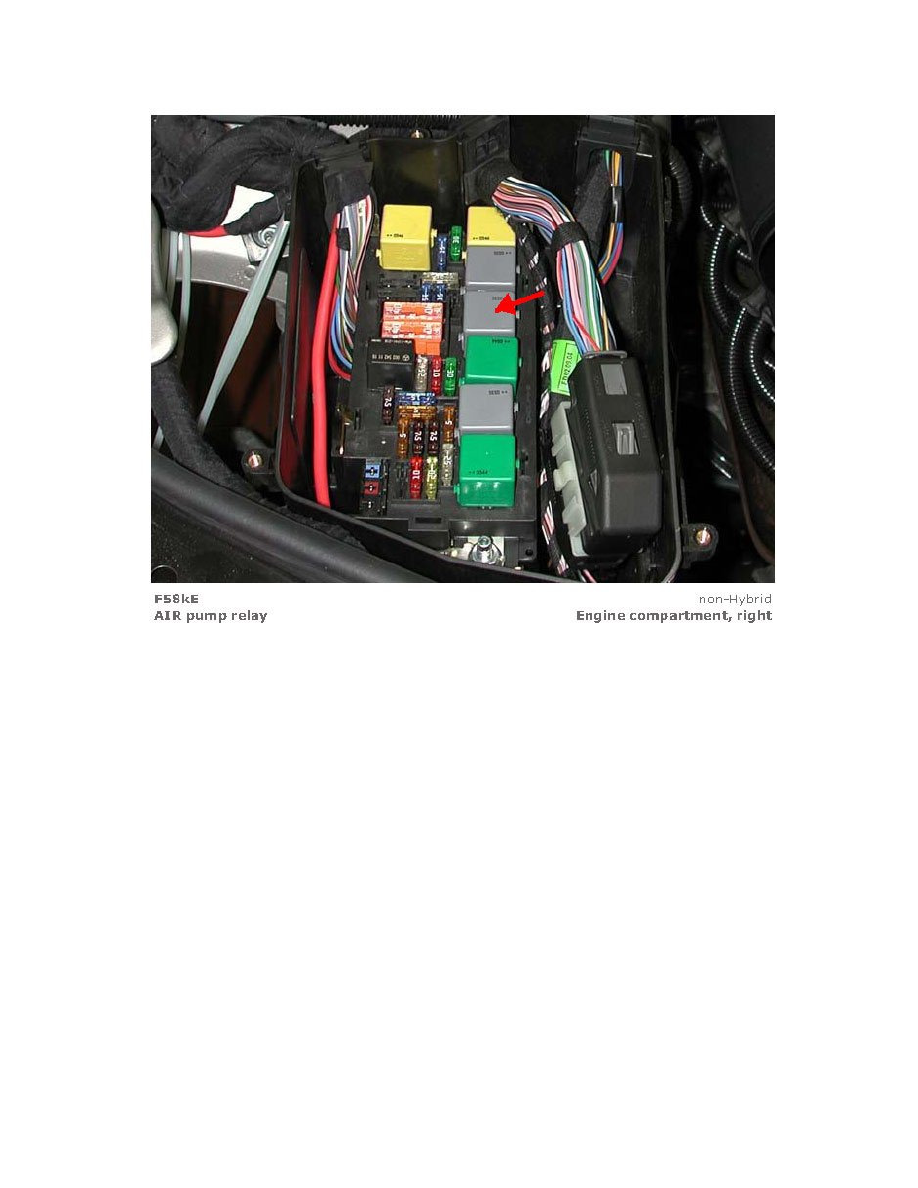

Air Injection Pump Relay: Locations

AIR Pump Relay

AIR Pump Relay (View 1)
