GL 320 CDI (164.822) V6-3.0L DSL Turbo (642.940) (2008)

Page 1
background image

Exhaust Gas NOx Sensor: Locations

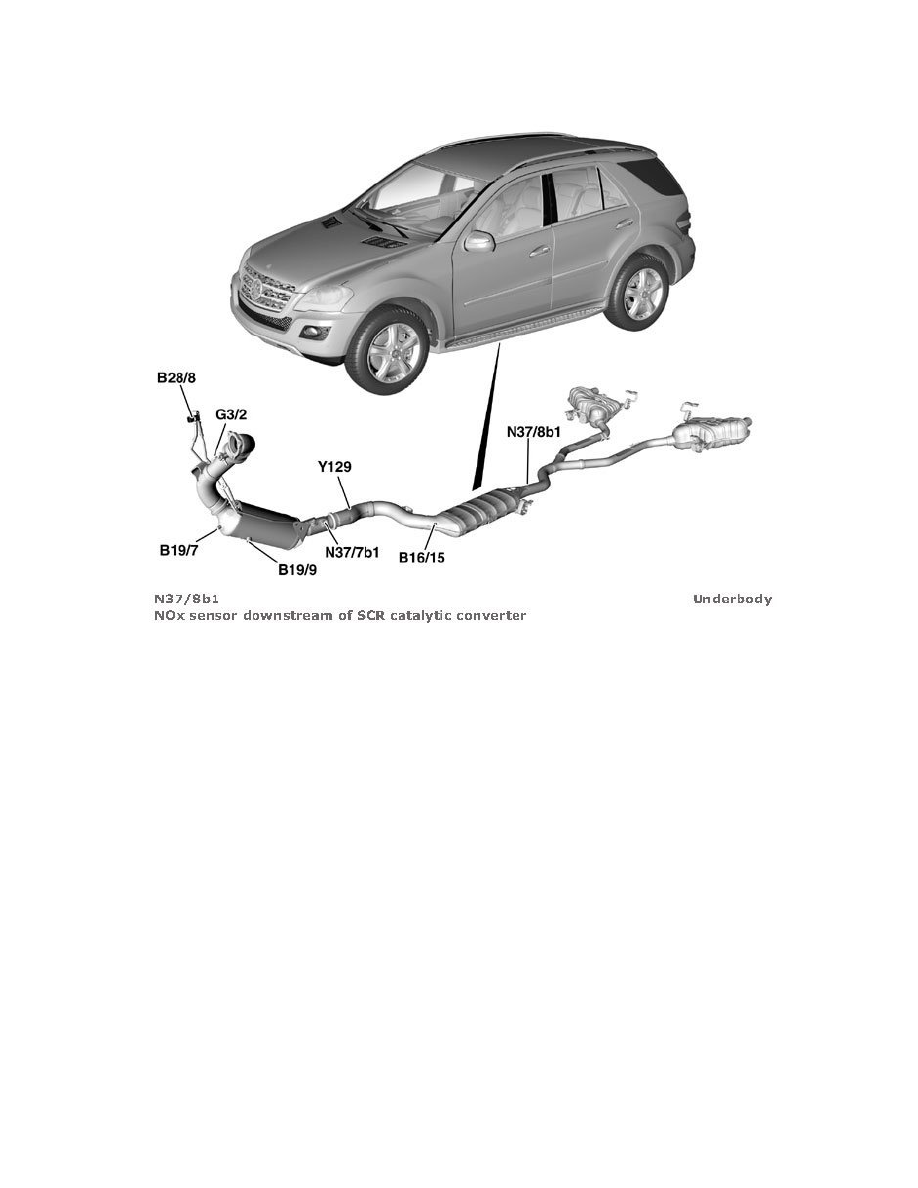

NOx Sensor Downstream Of SCR Catalytic Converter

NOx Sensor Downstream Of SCR Catalytic Converter (View 1)
