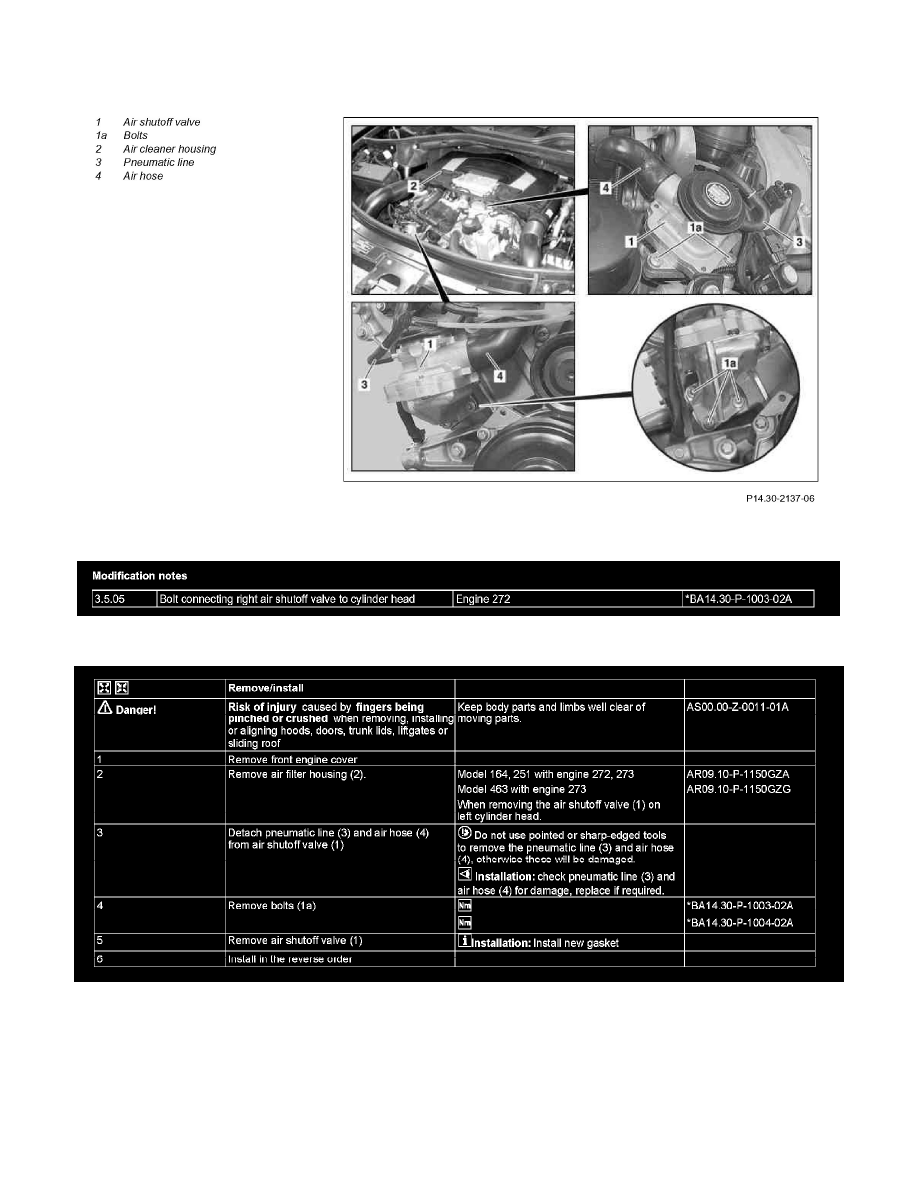

Air Diverter Valve: Service and Repair

AR14.30-P-7200GZA Remove/install air shutoff valve

Component Identification

Modification notes

Steps 1-6
