ML 350 4MATIC (164.186) V6-3.5L (272.967) (2006)

  • Heating and Air Conditioning
  • Discharge Air Temperature Sensor / Switch, HVAC
  • Component Information
  • Locations
  • Outlet Temperature Sensor, Center, Left

Page 1
background image

Discharge Air Temperature Sensor / Switch: Locations
Outlet Temperature Sensor, Center, Left

Outlet Temperature Sensor, Center, Left

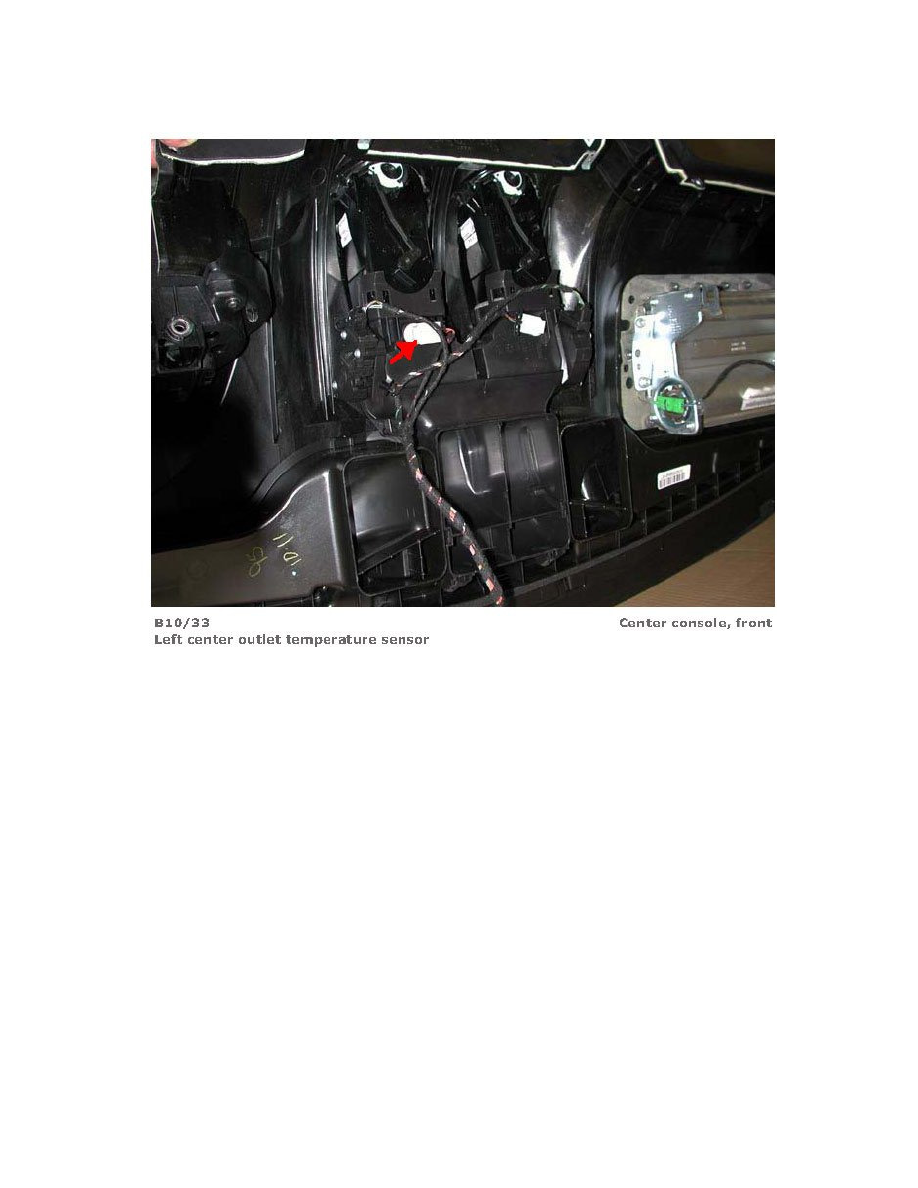

Left Center Outlet Temperature Sensor (View 1)
