ML 350 4MATIC (164.186) V6-3.5L (272.967) (2006)

Page 1
background image

Brake Pressure Switch: Locations

ESP Brake Pressure Sensor

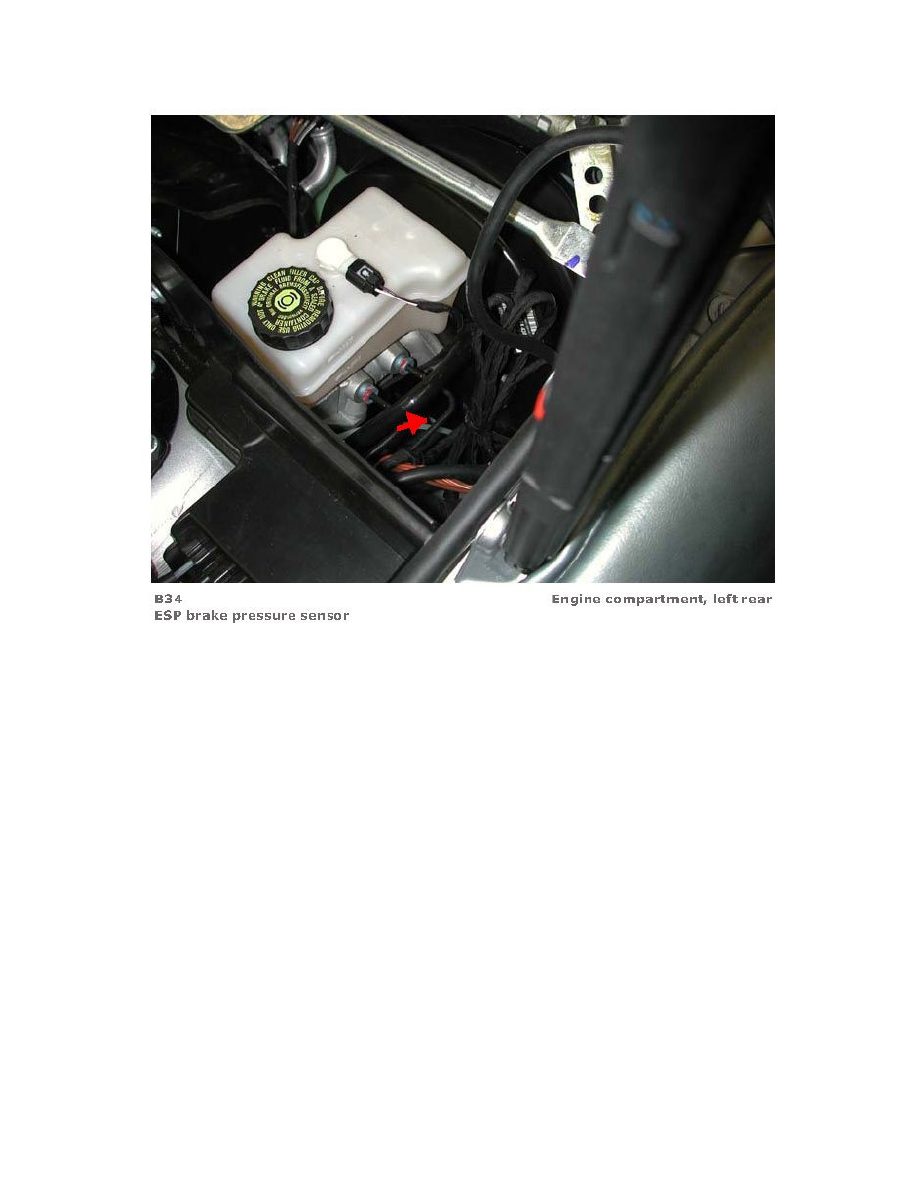

ESP Brake Pressure Sensor (View 1)
