ML 350 4MATIC (164.186) V6-3.5L (272.967) (2006)

Page 1
background image

Exhaust Temperature Sensor: Component Locations

Temperature Sensor Upstream of SCR Catalytic Converter

Temperature Sensor Upstream of SCR Catalytic Converter

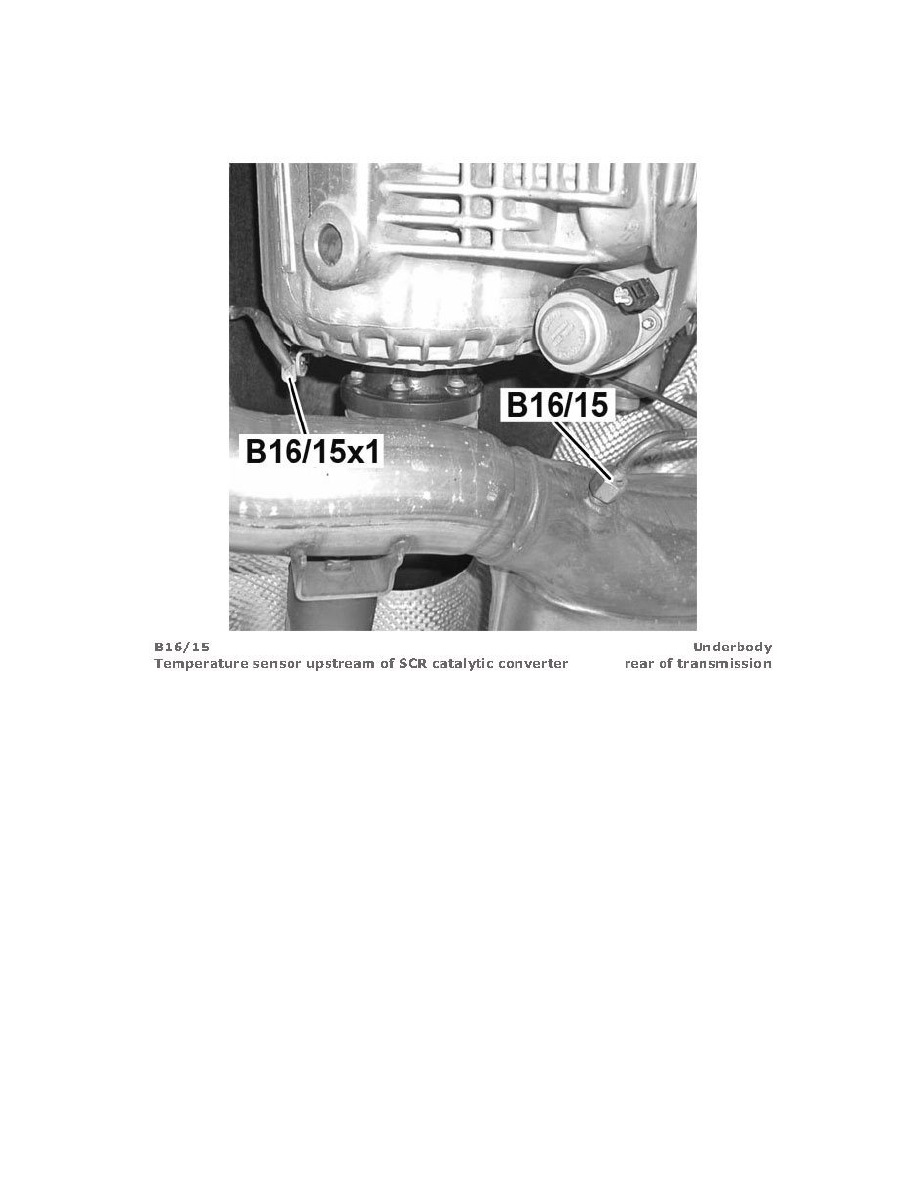

Temperature Sensor Upstream Of SCR Catalytic Converter (View 1)
