Exhaust Temperature Sensor: Component Locations

Temperature Sensor Upstream of SCR Catalytic Converter

Temperature Sensor Upstream of SCR Catalytic Converter

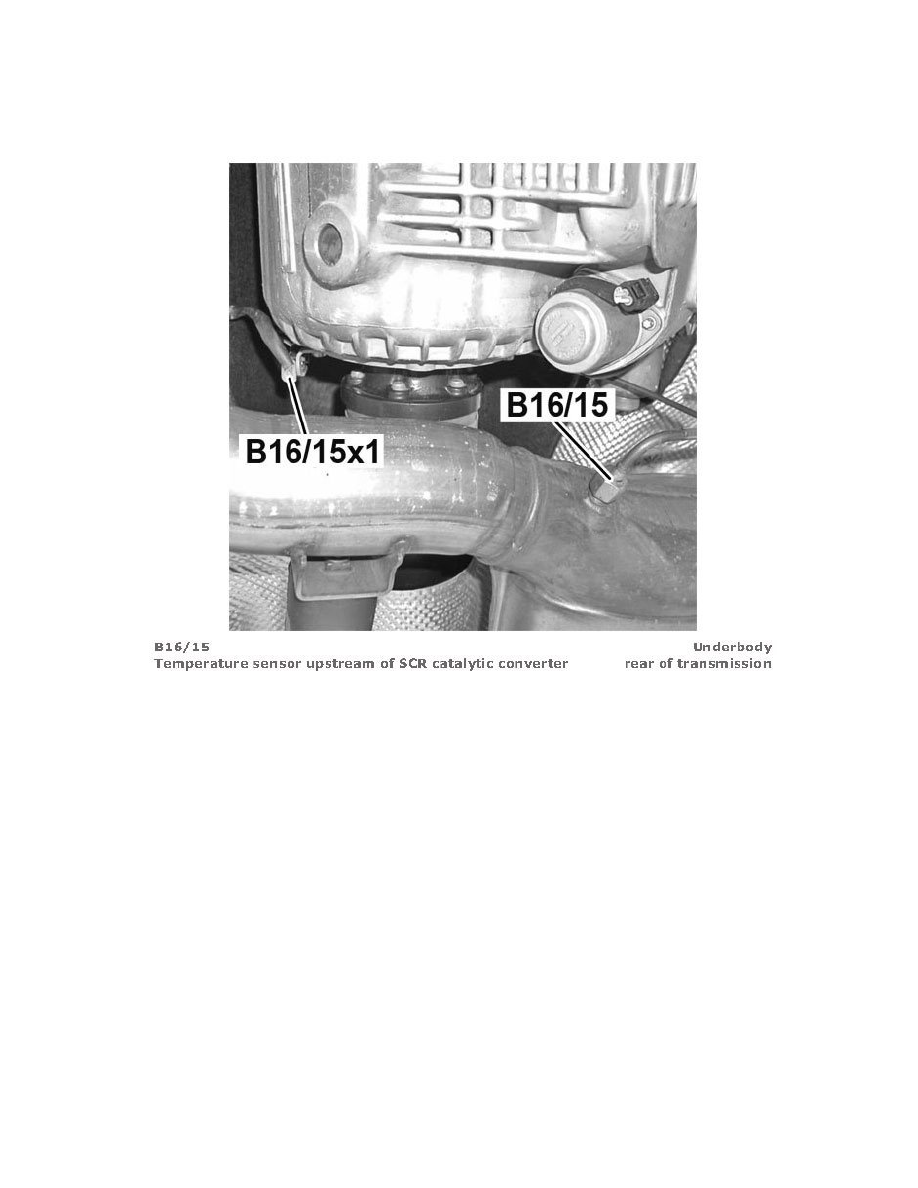

Temperature Sensor Upstream Of SCR Catalytic Converter (View 1)
