ML 350 4MATIC (164.186) V6-3.5L (272.967) (2006)

Page 1
background image

Fuel Pressure Sensor/Switch: Locations
Fuel Pressure Sensor

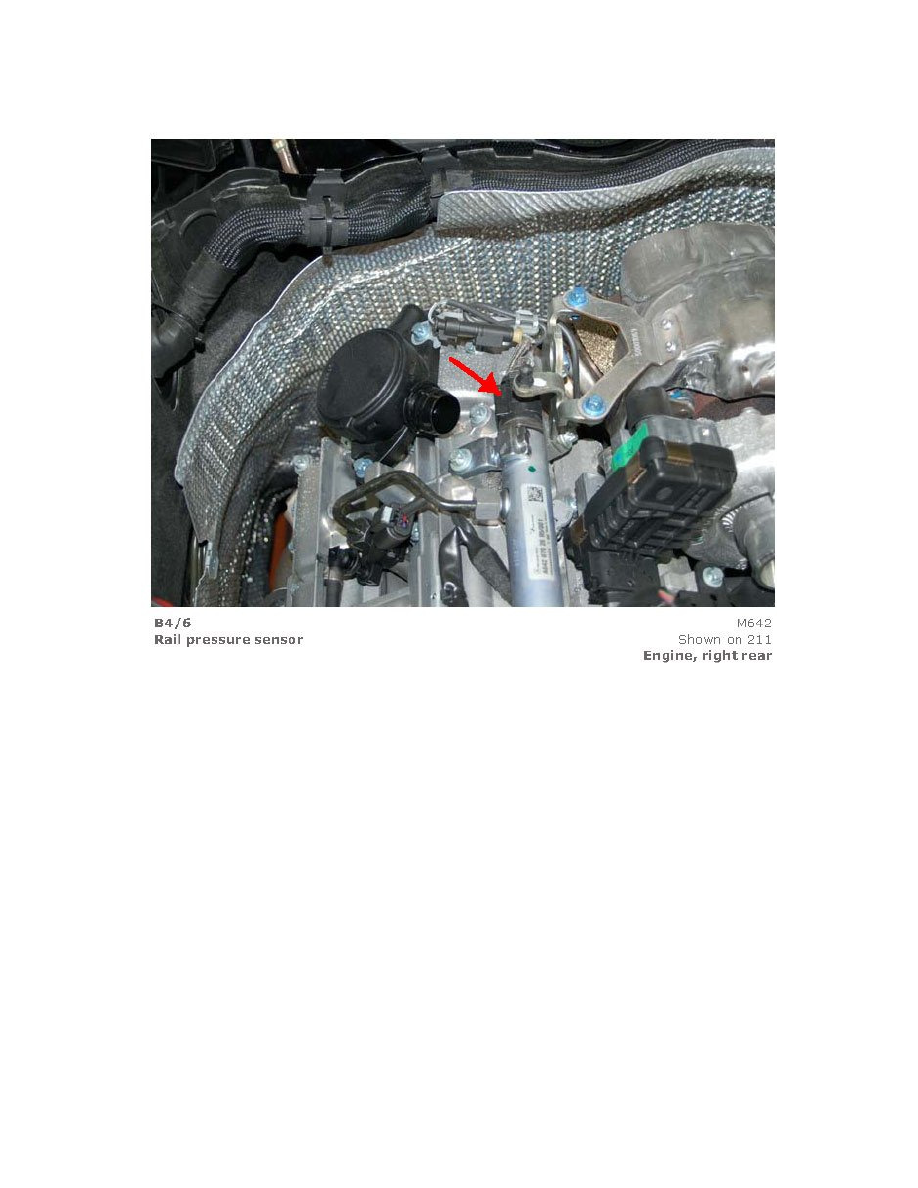

Rail Pressure Sensor

Rail Pressure Sensor (View 1)
