ML 350 4MATIC (164.186) V6-3.5L (272.967) (2006)

Page 1
background image

Variable Induction Control Valve: Service and Repair
AR09.20-P-1993GZA Remove/Install Resonance Flap Switchover Valve on the Intake Manifold

Removing/Installing The Resonance Flap Switchover Valve On The Intake Manifold

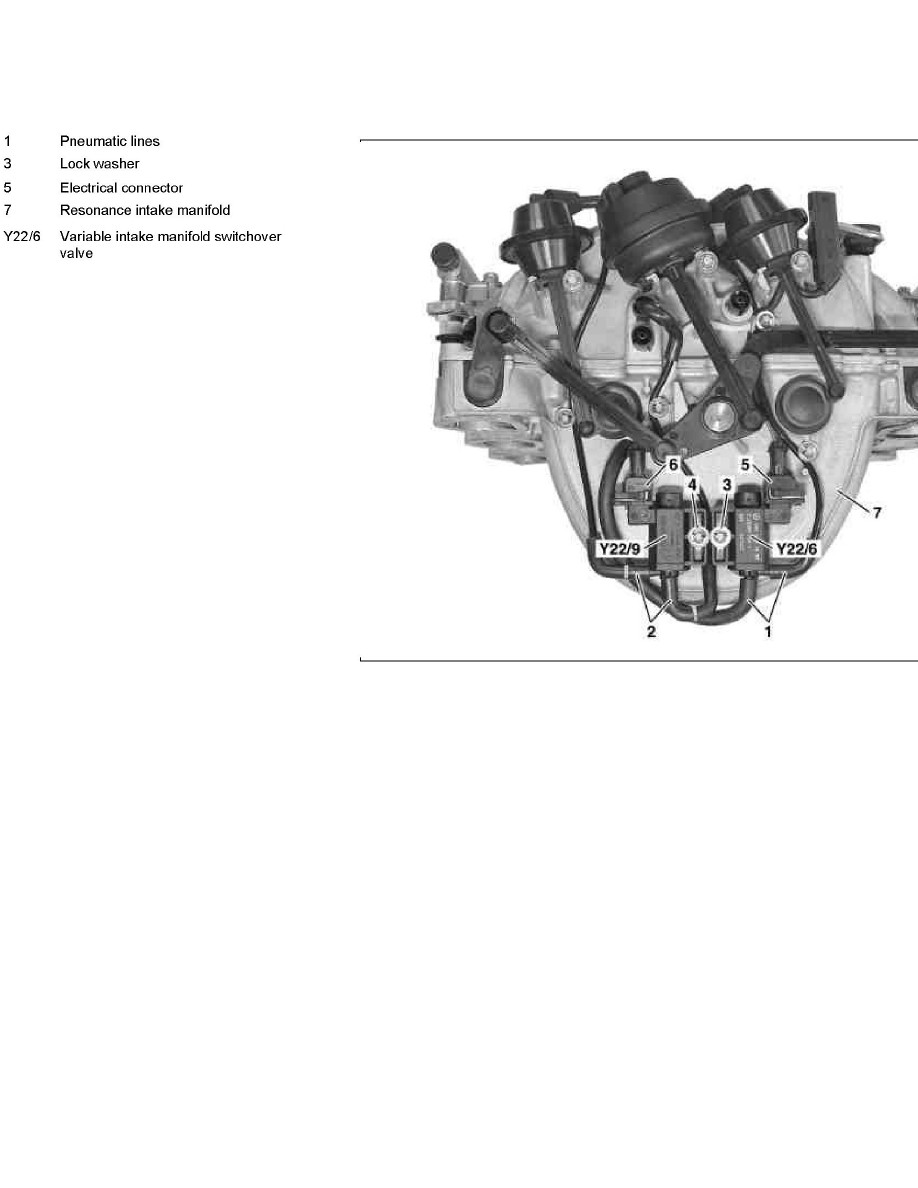

Component Identification
