ML 350 4MATIC (164.186) V6-3.5L (272.967) (2006)

Page 1
background image

Tire Pressure Module: Locations

TPM Control Module

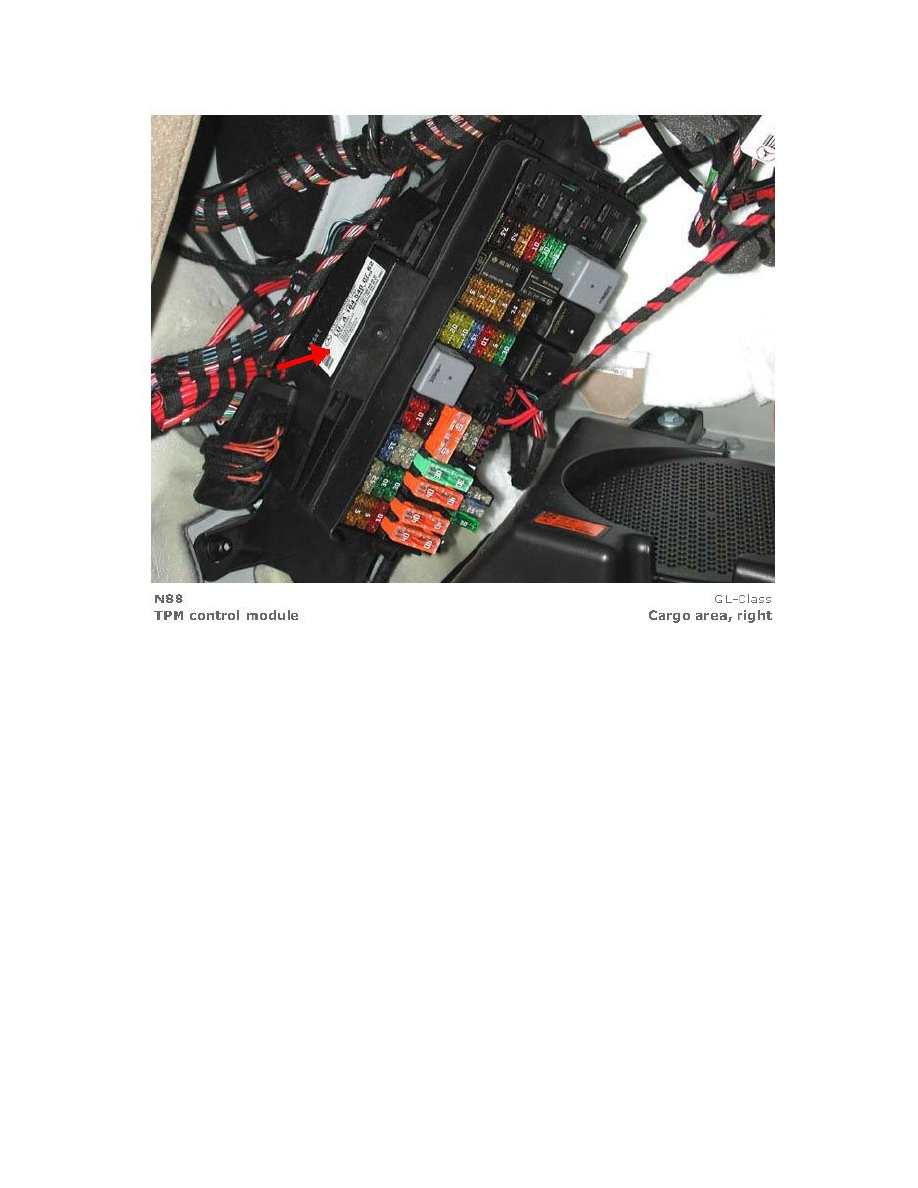

TPM Control Module (View 1)
