ML 350 4MATIC (164.186) V6-3.5L (272.967) (2006)

Page 1
background image

Oil Temperature Sensor/Switch: Locations
Oil Temperature Sensor

Oil Temperature Sensor

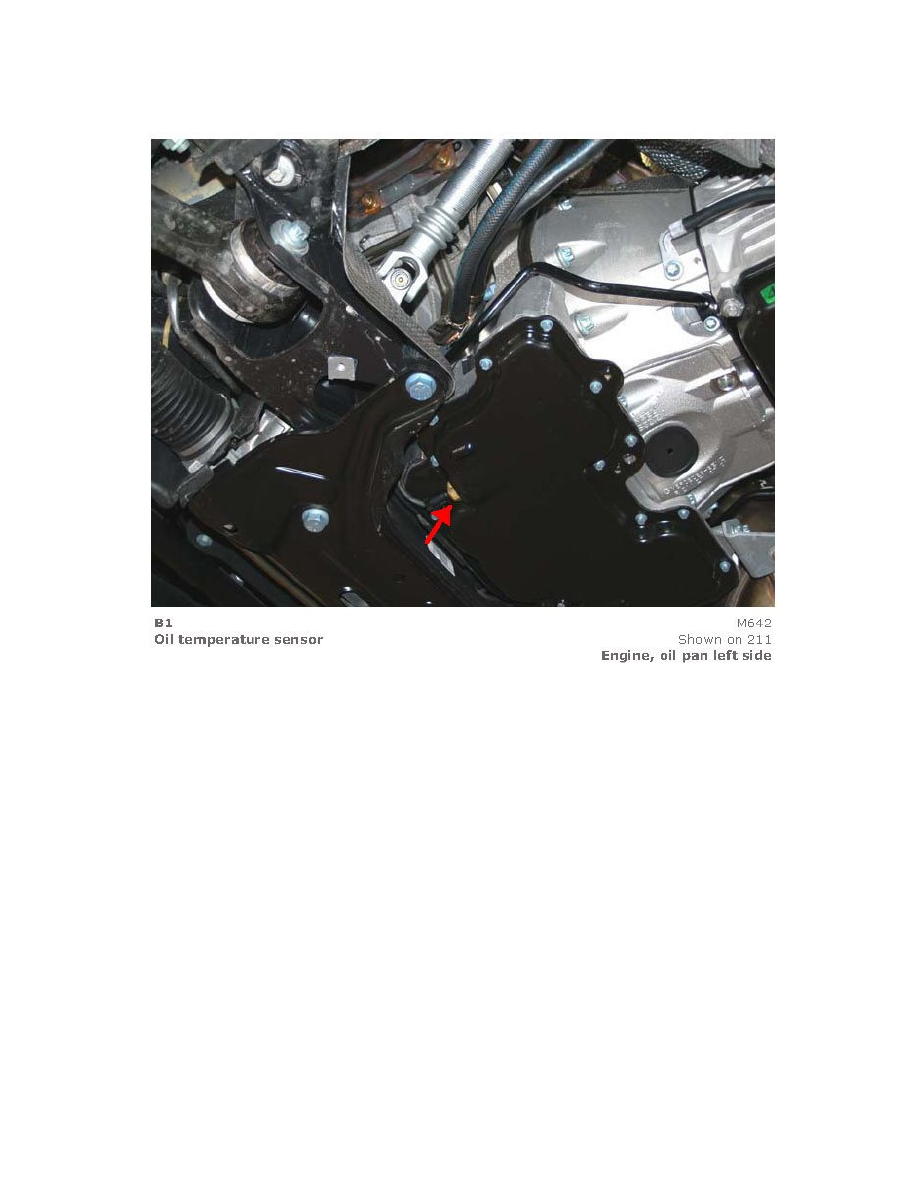

Oil Temperature Sensor (View 1)
